RS PRO Phase Monitoring Relay, 3 Phase, DIN Rail, Surface Mount

RS PRO Phase Sequence/Failure Indicator

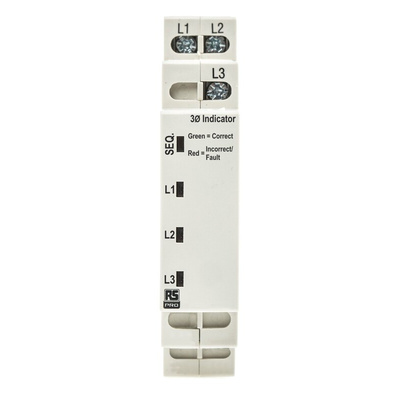

RS PRO is proud to introduce this high-quality monitoring relay. This device is a 3-Phase indicator used for monitoring a 3-wire supply while providing a visual indication as to the status of the phase sequence/rotation and presence of all phases.

The monitor has one bi-colour LED used to indicate phase rotation and illuminates in green to confirm the sequence is correct. If the rotation is incorrect the LED changes to red. Three individual green LEDs are incorporated to indicate the status of each phase i.e. L1, L2, and L3.

Where would you find a monitoring relay?

Monitoring relays are commonly found in control panels, switchboards, or distribution systems that require visual indication and status of a 3-phase power supply.

Features and Benefits

• Monitoring relay


• Reliable protection


• Used to indicate that all phases are present and phase sequence is correct (or incorrect)


• Designed for use on 3-phase, 3-wire supplies


• Individual Green LED’s to indicate the presence of each phase


• Bi-colour Red/Green LED indication for phase sequence status


• Compact, 17.5mm DIN Rail housing


• Dimensions: W:17.5 mm x H:89 mm x D:59 mm


• Weight 48 g

Electrical Specification

• Input: L1, L2, L3


• Supply/monitoring voltage U: 320 – 490V AC


• Frequency range: 48 – 63Hz


• Overvoltage category: III (IEC 60664)


• Rated impulse withstand voltage: 4kV (1.2/50μS)


• Power consumption (max.): <4VA

Dimensions

• Width:17.5 mm x Height: 89 mm x Depth: 59 mm

Note

Full specification and details can be found on the RS PRO datasheet.

Applications

• Distribution systems


• Control Panels


• Switchboards

Approvals

• Declarations: CE, RoHS and C-tick compliant


• Standards Met EMC: Immunity EN 61000-6-2, Emissions: EN 61000-6-4

RS PRO Datasheet
