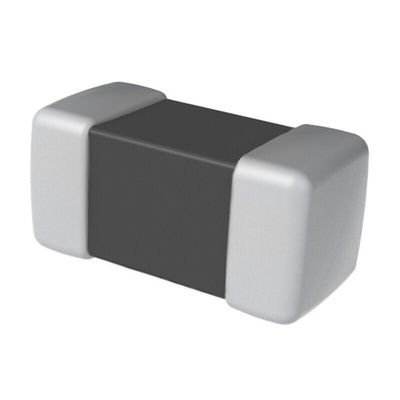

Z0603C221BPWZT, KEMET Ferrite Bead (Chip Bead), 0.063 x 0.031 x 0.031mm (Tape & Reel), 86.6Ω impedance at 25 MHz, 220Ω impedance at 100

2257787
Номер производителя: Z0603C221BPWZTПроизводитель: KEMET
Цена за шт. (норма упаковки 10 шт)
35.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The KEMET Z-PWZ power line high impedance ferrite chip beads are ideal for use in circuit designs that require high impedances and large currents to suppress radiated noise on power lines. The chip size of this ferrite beads provide waveform correction of digital signals and high frequency noise suppression in various types of digital mobile equipment that require low power consumption.

High impedance
Large withstand current
High reliability and resistance to high energy
Low stray capacitance due to wire wound structure
Two materials available to choose from
Impedance value from 32 – 2,000 Ω
Rated current range from 0.5 – 4 A
Operating temperature range from −40°C to +125°C

Техническая спецификация
pdfDatasheet - KEMET_FB0002_Z-PWZ.pdf
