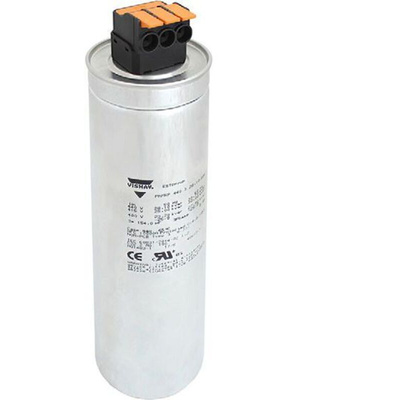

PhMKP440.3.14,10-S84, Vishay Power Factor Correction Capacitor (PFC) 3 x 77.0μF 14.1kvar 3

The Vishay PhMKP capacitors are metallized polypropylene film capacitors with self-healing properties. The current-carrying metal layer of an MKP capacitor is vaporized onto one side of the polypropylene film. 3-phase capacitor with 440 Vac voltage and 14.1 Kvar reactive power at 50 Hz.

Maintenance free
Reduced assembly times up to 60 %
Vibration proof in wind power plants and during transport
Optical connection check - lever closed = successfully contacted
2.5 mm2 up to 25 mm2 with wire-end sleeve
Defined continuous contact force through spring technology
Stainless steel spring
Corrosion proof
Fast and easy lever-operated wire connection
Copper alloy for conductor material
UL and cUL

Datasheet -PhMKP440.3.14,10-S84
