RS PRO Brushed DC Motor, 110 W, 23.5 V, 35 Ncm, 3000 rpm, 10mm Shaft Diameter, Двигатель

Low Profile dc Motors

Powerful, low profile motors offer many benefits when compared to a conventional permanent magnet dc motor.

Low profile construction requires less space than a conventional motor
Long motor life even when operated at full rating
High power to weight ratio
Very smooth running at slow speeds
Fast acceleration from rest under full load conditions
Low inductance
Low brush sparking
Low r.f.i. emissions
Available in two magnet materials:

M Style uses ferrite magnet material
N Style uses rare earth magnet material

N Style provides up to 2 1/2 times power, three times higher torque, from the same size motor compared with M type

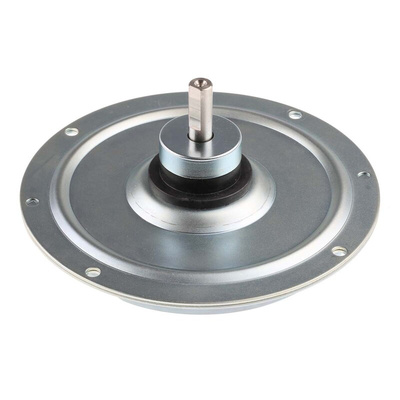

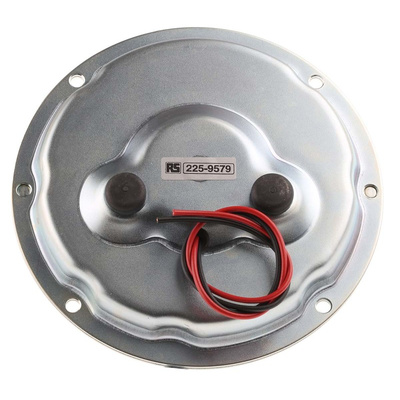

RS PRO Brushed DC Motor, 110 W, 23.5 V dc, 35 Ncm, 3000 rpm, 10 mm Shaft Diameter

This RS PRO brushed DC motor has an ultra-slim profile, it's easier to slot into smaller spaces than conventional permanent-magnet DC motors. Zero cogging and minimal torque ripple result in reduced vibrations and noise, giving you a long-lasting and reliable machine.

This brushed DC motor has a high power-to-weight ratio, so it delivers full power despite its low-profile build. It also ensures low levels of radio-frequency interference. This means circuits are protected against malfunction and can perform at an optimal level. The motor also has an ultra-low speed capability, very low inertia and low inductance to avoid energy dispersion and conserve power. This product has been rigorously tested and meets RoHS standards, so you won't need to worry about hazardous substances.

You'll find this type of device commonly used in industrial applications including automation processes, automotive equipment and the oil and gas industries.

Features and Benefits

• Supply voltage of 23.5 V DC
• Brushed DC motor type
• Power rating of 110 W
• Output speed of 3000 rpm
• Shaft diameter of 10 mm
• Maximum output torque of 35 Ncm
• Length of 60 mm
• Iron core construction to increase the magnetic field
• Current rating of 7.6 A

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
