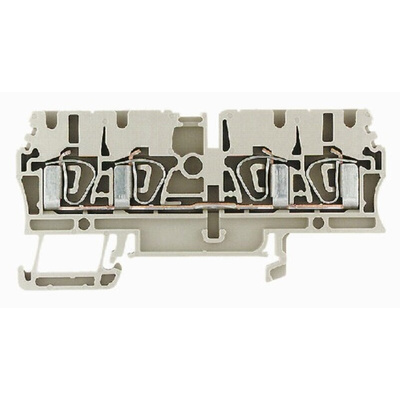

1608570000, Weidmuller ZDU Series Brown Feed Through Terminal Block, 2.5mm², Single-Level, Clamp Termination, ATEX

Weidmuller Feed-Through Terminal Block, 27A Current Rating, 30 to 12AWG Wire Size - Z Series - 1608570000

Making secure connections is effortless with this feed-through terminal block from Weidmuller. Tension-clamp terminals mean you can wire it without the need for special tools, giving you a simple and secure connection. It won't lose its cool in harsh environments thanks to its wide operating temperature range between -50°C and +120°C. Installing this component in your system is a doddle, as simply clips onto a standard TS 35 rail. Compact dimensions of 79.5 (H) x 5.1 (W) x 38.5mm (D) mean it won't take up too much space.

Features & Benefits

• Voltage rating of 800V for use in high-power applications
• Light weight of 11.59g to place minimal strain on your equipment
• Accepts wire sizes between 30 and 12AWG for versatility
• Rated impulse withstand voltage of 8kV to minimise the risk of damage from powerful surges

Applications

• Power distribution
• Panel building
• Control cabinets

What's the terminal block's housing made from?

The terminal block's housing is made from Wemid. This thermoplastic material is resistant to abrasion and is flame-retardant for durability and safety in harsh environments.

Approvals

1-7

NEMKO L92729

UL APPROVAL E60693
