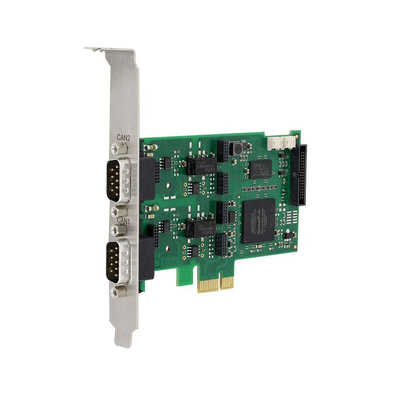

1.01.0233.22010, Ixxat 2 Port PCIe RS232 CAN 2.0 A/B CAN Card

The HMS Industrial Networks Ixxat CAN interfaces are modularly designed and can be equipped with up to four CAN high-speed channels. They can also be used within automotive applications with CAN low-speed and LIN channels. For fast networks, the CAN interfaces are also available with up to four CAN FD channels. The PC interfaces are available in low-cost passive or active versions with powerful on-board controllers. Active PC interfaces can be used in applications with high demands on data pre-processing, such as high-precision time stamping or active filtering of messages on the interface. In addition to custom applications, the CAN interfaces are also basis for the Ixxat analysis tools, as well as configuration software from a wide variety of equipment manufacturers.

Common driver interface
for easy exchange of the
PC interface type without any changes to your
application
Supports all standard
PC interfaces
Powerful driver packages
High data throughput
combined with low
latency
High quality standards
Free drivers for a variety
of operating systems

1.01.0233.22010 Datasheet
