22.3007-22 22.3007-21, Staubli Black, Red Male Banana Plug - Clamp Termination, 600V, 10A

Multi Contact Banana Plug

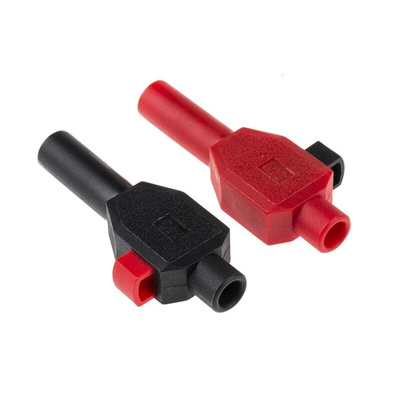

The Multi Contact black, Red male banana plug is a 4mm connector. It is equipped with spring-loaded Multilam for clamp-connecting stranded wires with a rigid and insulating sleeve. The plug consists of strong (thumb pressure) spring mechanism that ensures reliable contact along with low impedance. This plug has a voltage rating of 600V and current rating of 10A.

Features and Benefits

Clamp termination
Nickel contact plating and brass contact material
Shrouded centre contacts
Suitable for clamp-connecting stranded wires ranging from 0.12mm2 to 2.5mm2
Length is 49mm

Applications

Automotive (car manufacturing plant equipment)
Motorsports
Aeronautics (plant equipment)

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IEC1010

4 mm Clip-on Plugs Data Sheet
