RS PRO Cable Mount Ethernet Switch, 5 RJ45 Ports, 10/100Mbit/s Transmission, 57V dc

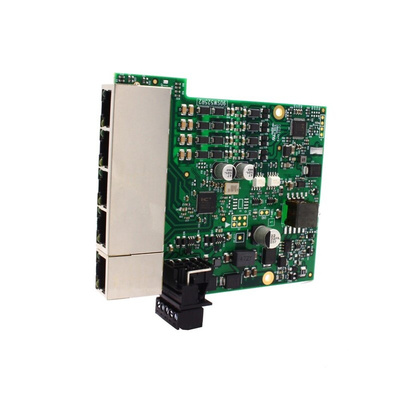

RS PRO RS-125 Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch

The RS PRO range of ethernet switches continues to improve. Here we are pleased to introduce the superb 5-port embedded industrial ethernet switch module with 10/100Mbps transmission speed. This high-quality device is packed with operational features suitable for ethernet networks, operates on an unregulated voltage range of 44 V dc to 57 V dc, and consumes a maximum power of 4W. This device is uncased for embedded applications and the mounting holes are connected to functional earth.

What is an ethernet switch?

Ethernet switches, also known as LAN (local area network) switches, are an integral part of any computer network interface. Fixed switches have a fixed number of ports and can come in speeds Fast Ethernet (10/100 Mbps), Gigabit Ethernet (10/100/1000 Mbps), Ten Gigabit (10/100/1000/10000 Mbps), and 40/100 Gbps speeds. When choosing the speed, you should consider the network needs of the user and whether they will be transferring large volumes of data. This RS PRO Ethernet switch has a speed of 10/100 Mbps.

Features and Benefits

• 5 Port PoE+ 10/100 Mbs Ethernet Switch


• Redundant dual power inputs: +44 V to +57 V dc


• No software required - Simply plugin and connect


• Industrial temperature range

Specification

• Power Consumption: 4 W max: 220 mAmps@+5V dc/36mAmps@+30 V dc


• PoE Power Budget: 90W @ 70 °C


• Power Supply input: Unregulated +44 V to +57 V dc, reverse polarity protection


• Operating Temperature: -40 °C to +70 °C


• Ethernet Ports: 5 x RJ45 jack, 10/100Mhz autosensing, crossover auto-sensing (Auto MDIX)


• Ports 1-4 IEEE 802.3 af/at compliant: deliver up to 30W to each port


• Unmanaged 10/100Mbps Ethernet


• Housing: This device is uncased for embedded applications. The mounting holes are connected to Functional Earth


• Dimensions: 95 x 90 x 20 mm


• Weight: 182 g

Applications

Industrial hubs are the devices used to connect several Ethernet devices together at one time. They then function as a single network together. They can be used in the following areas:

• Automation industries


• Energy industries


• Machinery & robotics industries


• Transportation industries


• These RS PRO unmanaged Ethernet switches are suitable for the factory floor, in-vehicle and marine applications

FAQs

What is the difference between managed and unmanaged switches?

Unmanaged switches let you immediately plug and play devices into your network and cannot be modified or managed. They are usually used in home networks and small businesses.

Managed switches allow for greater control and are ideal for larger businesses and organisations with a large and growing network.
