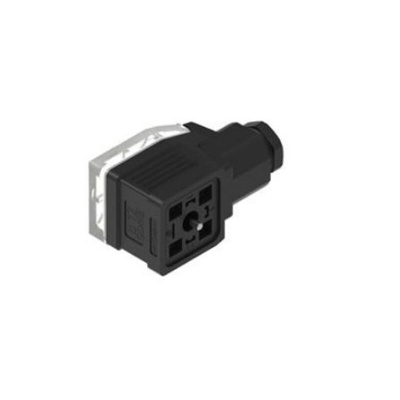

933029100 GDME 2011 black, Hirschmann GDME 2P+E DIN 43650 A, Female Solenoid Valve Connector, No, 250 V dc, 400 V ac Voltage, Разъем

GDME Series

2P+E

Note

These connectors are only suitable for power coupling to a fixing point or item of plant, or for internal wiring of equipment.

Approvals

UL recognised component, CSA certified, VDE

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

GDM Series - Cable Sockets, Inserts & Accessories

Datasheet - 933029100 GDME 2011 black
