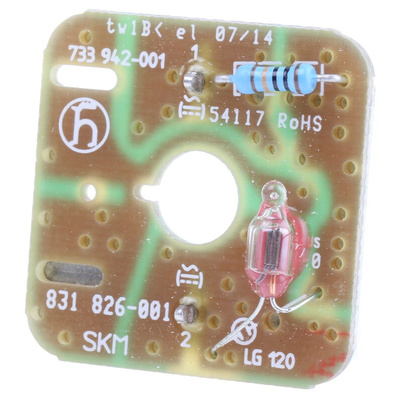

831826001 GDME LG 120, Hirschmann Function Indicator for use with GDM Series Rectangular Connector

Belden Hirschmann Connector Accessory, Function Indicator Type, 8A Current Rating - GDM Series - 831826001 GDME LG 120

Keen to know your connector's power status? Turn to this Belden Hirschmann function indicator. It lights up when power flows through it, so you get a clear signal of a plug's switch position at a glance. Thanks to the bright glow lamp, it stands out in standard lighting conditions. Installation is a breeze, as it slots onto a cable socket (283-8093). Compatibility with AC and DC loads makes this a versatile fit for common power supplies.

Features & Benefits

• Central fixing hole ensures a secure fit to a connector
• Handles current up to 8A to work with demanding loads
• Operating temperature range from -40ºC to +110ºC for reliable signalling in harsh environments

Applications

• Manufacturing industry
• Control devices
• Material handling

Do I need to fit a separate power supply for this product?

No, this indicator draws power from its connector, so you can skip the hassle of arranging an extra supply.

Approvals

UL recognised component, CSA certified, VDE

Standards

DIN 43650-A

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10
