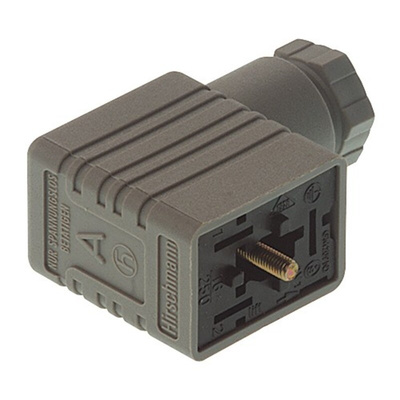

932977106 GM 209 NJ grey, Hirschmann GM 2P+E, Female Solenoid Valve Connector, No, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, 3-Pin Configuration, Field Attachable - GM Series - 932977106 GM 209 NJ grey

Choose this solenoid valve connector from Belden Hirschmann when you want to make quick in-field connections. Its plug-and-play design and screw connections make it a cinch to wire using just a screwdriver. Rigid housing with an IP65 rating means you can be sure of reliability, even in dusty or moist conditions. This adaptor is ideal for hooking up pneumatic equipment such as pressure sensors and flow monitors.

Features & Benefits

• Tough PA GF housing makes it compatible with harsh industrial settings
• Self-extinguishing to minimise the risk of fires spreading
• Integral PG9 cable gland to protect the connection

Applications

• Agricultural machinery
• Breweries
• Pharmaceutical manufacturing
• Automated assembly lines

What size cables are compatible with this connector?

For versatility, you can use this adaptor with wires ranging in diameter between 4.5 and 7mm.

Industrial Standard Hirschmann

A comprehensive range of cable sockets and appliance connector bases typically for use with solenoid valves on pneumatic and hydraulic equipment. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.

2P+E
Ambient temperature: -40°C to +90°C

GM_GMN-SERIES - Data sheet

Datasheet

Datasheet - 932977106 GM 209 NJ grey

Catalogue - Valve Connectors
