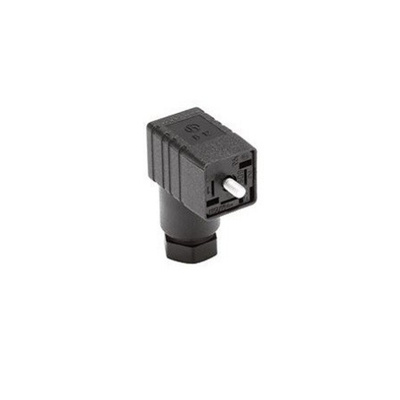

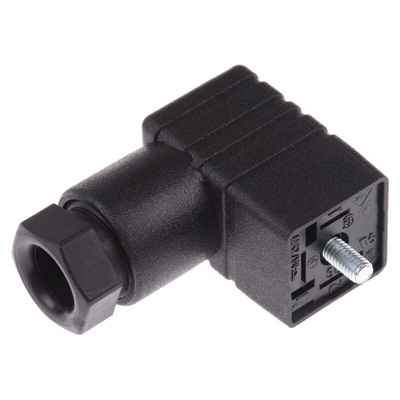

933138100 GDS 207 black, Hirschmann GDS 2P+E DIN 43650 C, Female Solenoid Valve Connector, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, 6A Supply Current, PG7 Cable Gland Size - GDS Series - 933138100 GDS 207 Black

Use this solenoid valve connector from Belden Hirschmann to complete a solenoid connection for your setup. It's suitable for use with a 250V AC/DC power supply, so is compatible with higher-capacity systems. As this is a female unit, simply pair it with a male component to achieve a secure link. The device uses screw-down termination and mounting, making installation simple.

Features & Benefits

• IP65 rating means it's dust-tight and resistent to low-power water jets from all directions
• Cable diameter of 4.5 to 6mm means it'll fit a number of different cables
• Low contact resistance of

Applications

• Pneumatic systems
• Machine manufacturing

What DIN type is this solenoid valve?

This valve is DIN 43650 C type, meaning you can use it with standard equipment.

Note

Gasket sold separately - RS SKU 156-1118

DIN 43650C Hirschmann

A comprehensive range of connectors and plug bases typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.

Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.

Sockets L. 38mm (overall)
H 27mm (inc. gasket)
M3 retaining screw
Body section 15x15mm
Plug base 17x17mm, H 8.5mm

933138100 Datasheet
