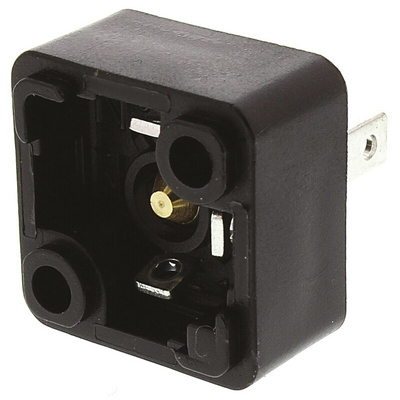

933110100 GSSNA 200, Hirschmann GSSNA 2P+E DIN 43650 C, Male Solenoid Valve Connector, No, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, 6A Current Rating, Solder Terminals - GSSNA Series - 933110100 GSSNA 200

Choose this solenoid valve connector from Belden Hirschmann to keep your pneumatic circuit up and running. It makes a reliable connection between equipment and your electrical supply, so there's minimal risk of leads working loose. Thanks to its robust PA-GF housing, you can put the unit to the test in harsh operating conditions. Its solder terminals ensure the connector stays firmly attached to your cable, even in moving applications.

Features & Benefits

• One central screw for quick and simple mounting
• Reusable, as you can mate it up to 50 times
• Flame-retardant, so burns for a maximum of 30 seconds in the event of a fire

Applications

• Pharmaceutical manufacturing
• Breweries
• Agricultural machinery

Does this valve connector withstand washdowns?

When correctly mounted and locked, the receptacle makes an IP65-rated connection that's dust-tight and protected against low-pressure water jets. This makes it suitable for light washdowns.

DIN 43650C Hirschmann

A comprehensive range of connectors and plug bases typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.

Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.

Sockets L. 38mm (overall)
H 27mm (inc. gasket)
M3 retaining screw
Body section 15x15mm
Plug base 17x17mm, H 8.5mm
