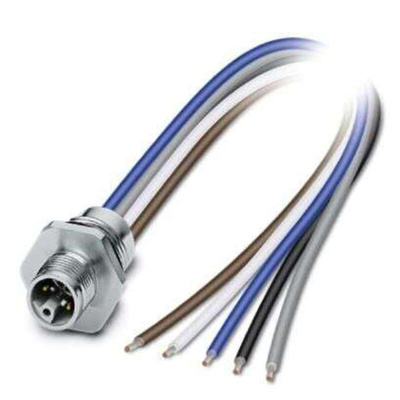

1425627, Phoenix Contact, 1425 IP67 Rear Mount 5P Power Connector Plug, Rated At 12A, 63 V

Flush-type connector

The Phoenix Contact flush-type power connector has a 5-position. Plug has M12 thread size. Front mounting M16 x 1.5 individual wires. Cable length is 0.2 m 1.31 mm².

For compact devices transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Pre-assembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety shield connection to the housing with optional EMC nut

Datasheet -1425627
