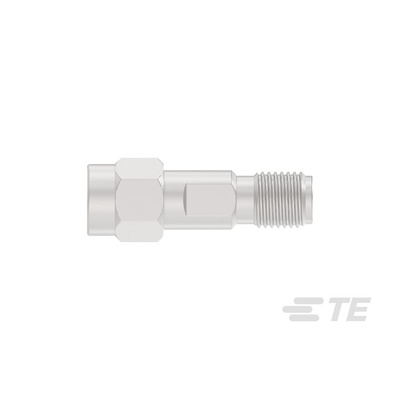

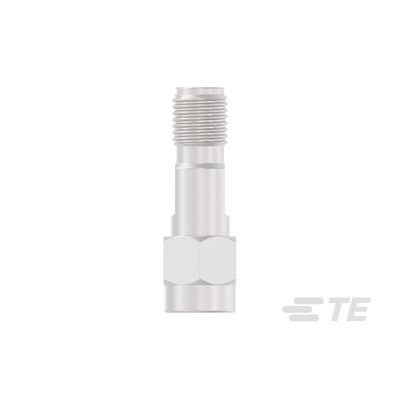

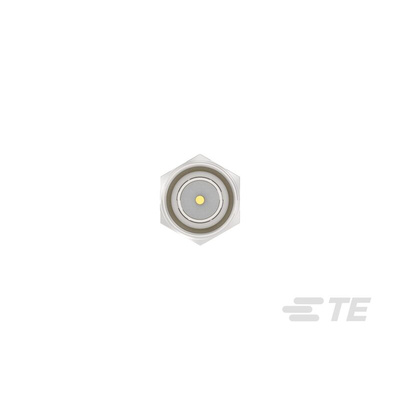

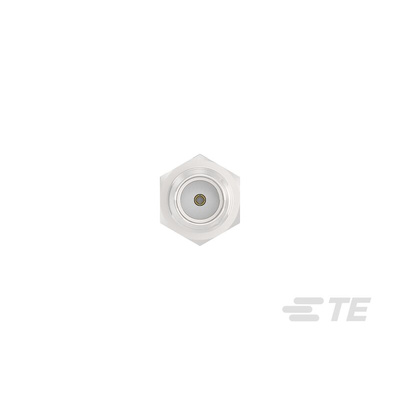

2081888-1, TE Connectivity Straight 50Ω RF Adapter SMA Plug to SMA Socket

The TE Connectivity EP-SMA 27GHz RF connectors, adaptors and cable assemblies provide low insertion loss, industry leading voltage standing wave ratio (VSWR), and other mechanical and electrical functions to meet the needs of 5G, ATE, bench top, module, wireless devices, and radar in test and measurement, AD&M, and electrical & electronic components industries. With the same footprint as SMA-6GHz, 12GHz, 18GHz solutions, there is typically no need to change the layout of your customer’s applications to allow higher frequencies of up to 27GHz or higher electrical SMA performance.

Industry Leading SMA Performance: EP-SMA 27GHz
voltage standing wave ratio (VSWR) and insertion loss
performance is superior to previous-generations of
SMA-6GHz, 12GHz, and 18GHz. EP-SMA 27GHz adaptors
perform at <1.15 VSWR and cable assemblies perform
at <1.20 VSWR frequency (as compared to most
competitive product’s performance of 1.25 VSWR)
Economic Upgrade Solution: Maintains the same footprint
as SMA-6GHz, 12GHz, and 18GHz, so there is typically no
need to change the layout if customer requires higher
frequency to 27GHz or higher electrical SMA performance.
