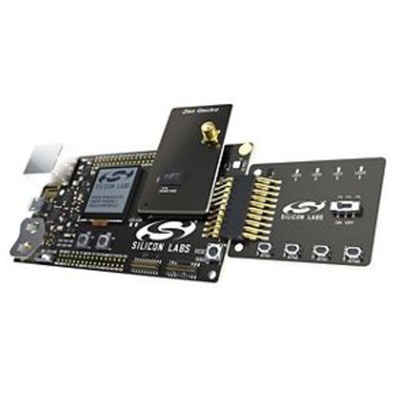

Silicon Labs Z-Wave 700 Starter Kit ZGM130S Evaluation Kit for Z-Wave 700 SLWSTK6050B

The Silicon Labs Z-Wave 700 Wireless Starter Kit includes the Z-Wave software stack, sample code, integrated debug adapter and support for Z-Wave Long Range. A single world-wide development kit for both end devices and gateways with multiple radio boards enable developers to create a mesh network and evaluate the Z-Wave 700 module. With the supporting Simplicity Studio suite of tools, developers can accelerate their wireless application development
mesh networking debug and Z-Wave protocol sniffer tools for analysis
and visual energy profiling and optimization. The Z-Wave 700 SDK is downloaded through Simplicity Studio. In Simplicity Studio, developers can access all documentation, developer guides and much more.

ZGM130S Wireless Gecko SiP Module with 512 kB Flash, 64 kB RAM, integrated RF matching network, crystals, and decoupling capacitors (ZGM130S037HGN2)
SMA connector or PCB antenna for RF connection
Advanced energy monitor
Packet trace interface
Virtual COM port
SEGGER J-Link on-board debugger
External device debugging
Ethernet and USB connectivity
Silicon Labs Si7021 Relative Humidity and Temperature sensor
Low Power 128x128 pixel Memory LCD
User LEDs / Pushbuttons
20-pin 2.54 mm EXP header
Breakout pads for SiP Module I/O
CR2032 coin cell battery support

Datasheet - SLWSTK6050B
