RS PRO Heat Shrink Tubing, Black 5mm Sleeve Dia. x 10m Length 2:1 Ratio

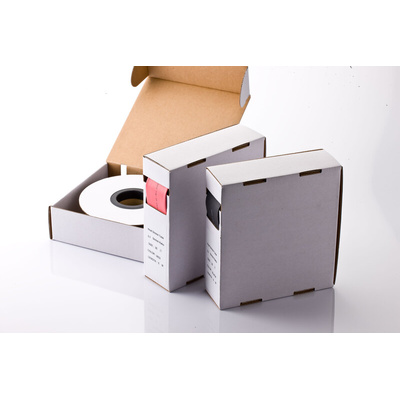

RS PRO General Purpose Heat Shrink Tubing Ratio 2:1 – Mini Box

Introducing from the trusted brand RS PRO a unique heat-shrink tubing in a dispenser box. This handy package stores a shrink ratio 2:1, general-purpose, flame retardant polyolefin heat shrink tubing. During application this box makes life easier for the user by eliminating the unravelling of heat shrink tubes, engineers can dispense the required tube amount needed for the application and then safely store it away with complete protection by the durable box.

What are Heat Shrink Tubes?

Heat shrink tubing is a type of extruded plastic tubing that can be cut to size and fitted over a wire or cable joint to protect and insulate the connection. When heated is applied the tubing shrinks permanently providing a protective seal. The amount it shrinks depends on its shrink ratio. When you buy the tubing, it is in its expanded state, this expanded tubing has a memory so when it is heated it returns to its original state. Larger shrink ratios are required to cover materials with a greater size variation.

Features and Benefits

• Shrink ratio: 2:1


• Very flexible, high flame retardant


• Resistant to common solvent liquid


• Excellent physical, chemical and electrical performance


• Tube Colour: Black


• Polyolefin Sleeve, various length available


• Compliance with RoHS


• Operating temperature: 55 °C ∼125 °C


• Minimum shrink temperature: 70 °C


• Full recovery temperature: Above 110 °C

Sleeve Diameter - 5 m Variants

• 6.5 mm - RS stock no: 226-9110


• 9.6 mm - RS stock no: 226-9112


• 12.7 mm - RS stock no: 226-9113


• 19 mm - RS stock no: 226-9114


• 26 mm - RS stock no: 226-9115

Sleeve Diameter - 7.5 m Variants

Sleeve Diameter – 10 m Variants

• 3.5 mm - RS stock no: 226-9108


• 5 mm - RS stock no: 226-9109

Sleeve Diameter – 12 m Variants

• 3.5 mm - RS stock no: 226-9108


• 5 mm - RS stock no: 226-9109

Applications

• Mechanical protection


• Insulation and organisation


• Electrical servicing

RS PRO Datasheet
