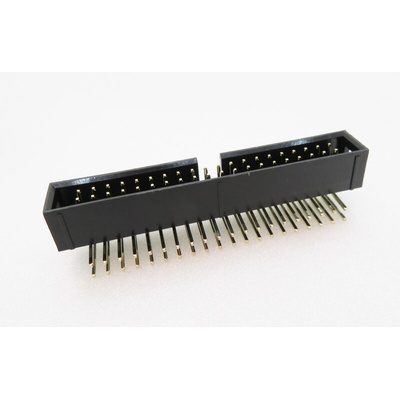

RS PRO Right Angle PCB Header, 40 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

RS PRO, 40 Way, 2 Row, Right Angle PCB Header

This RS PRO Series 100" Box Headers are a dual row shrouded header for use with dual row IDC female socket connectors. Our low profile, space saving design has a centre slot for the socket’s polarization bump. These RS PRO Headers are available in Straight PCB Mount, Right Angle PCB Mount and SMT Mounting. Plating options include choice of Gold, Tin or Selective Gold. SMT versions are manufactured with a Hi-Temp insulator.

Features and Benefits

• Superior low-profile design


• Slot for IDC socket Polarization bump


• Straight PCB, Right Angle PCB and SMT versions


• Gold, Tin or Selective Gold plating


• Options include Elevated types and integral latches


• Hi-Temp insulator available


• Lead free, RoHS compliant

Applications

These RS PRO PCB headers can make multiple electrical connections to a PCB using one connection block or cable. They are simple to use
solder a PCB header onto your board and you'll be ready to make connections to multiple pins. PCB headers are easy to understand and have one primary function of allowing wire-to-board which makes them make a great introduction to electronics.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
