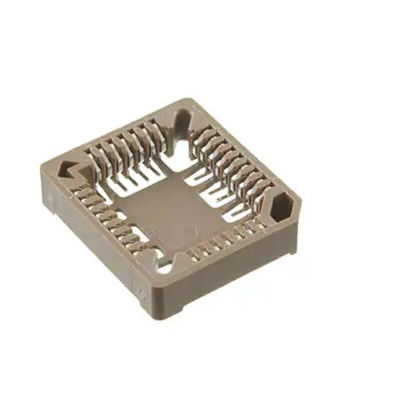

IC Socket Type, RS PRO 1.27mm Pitch 32 Way SMT PLCC Socket

2272203
Производитель: RS PRO
Цена за шт. (норма упаковки 28 шт)
144.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 1.27mm Pitch 32 Way SMT PLCC Socket/
This range of RS PRO PLCC Sockets are designed to convert plastic leaded chips to a thru-hole PCB format on a 100 inch centreline grid. The sockets have a thin wall and are low profile and they conform to JEDEC MS 016 and MS 018 pin count standards. The RS PRO superior precision stamped contact design provides consistent, high retention contacts for all size chips.
Features and Benefits/
ulliFull range of sizes from 20P ∼ 100P/liliLead free, RoHS compliant/li liConsistent, uniform high retention contacts/liliCompatible with wide range of chip sizes/liliNo solder wicking design/liliHi Temp PPS insulator/liliOpen frame design for viewable solder joints/li/ul
Applications/
PLCC Sockets are commonly used in electronics applications and a socketed chip is particularly useful when developing new products. PLCC sockets are compatible with a range of chip sizes so for example where on-board programming is not achievable when PLD or another chip is needed they can be programmed off the circuit board before being added to test the system operation.
Why RS PRO?/
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standardsthey re only given the RS PRO seal of approval if we re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
Mfr Part No.:
IC Socket Type
Кол-во контактов:
32
Материал контактов:
Phosphor Bronze
Покрытие контактов:
Tin over Copper
Род:
Female
Тип монтажа гнезда:
Surface Mount
Шаг:
1.27mm
