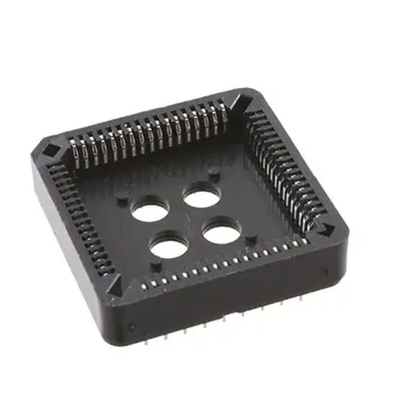

RS PRO 1.27mm Pitch 68 Way Through Hole PLCC IC Socket

RS PRO PLCC Socket

The RS PRO SMT PLCC series socket is a low profile, thin wall socket designed to convert plastic leaded chips to a thru-hole PCB format on a 100in centreline grid. It conforms to JEDEC MS 016 and MS 018 pin count standards. The socket has a voltage rating of 100VAC and a current rating of 1A. The superior precision-stamped contact design of socket provides consistent, high retention contacts for all size chips.

Features and Benefits

• Compatible with wide range of chip sizes
• Contact plating of tin over Nickel
• Contacts material is Phosphor Bronze
• Full range of sizes from 20P to 100P
• Hi Temperature PPS insulator
• Maximum current resistance of 15mohm
• Minimum insulation resistance of 1,000Mohm
• No solder wicking design
• Open frame design for viewable solder joints
• Operating temperature ranges between -55°C and 105°C

Certifications

• UL94V-0

RS PRO Datasheet
