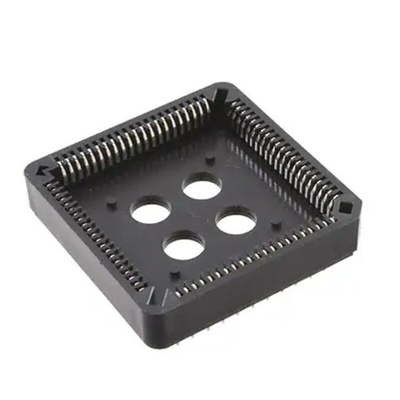

RS PRO 1.27mm Pitch 84 Way Through Hole PLCC IC Socket

RS PRO 1.27mm Pitch 84 Way Through Hole PLCC Socket

This range of RS PRO PLCC Sockets are designed to convert plastic leaded chips to a thru-hole PCB format on a 100 inch centreline grid. The sockets have a thin wall and are low profile and they conform to JEDEC MS 016 and MS 018 pin count standards. The RS PRO superior precision stamped contact design provides consistent, high retention contacts for all size chips.

Features and Benefits

• Full range of sizes from 20P ∼ 100P


• Lead free, RoHS compliant


• Consistent, uniform high retention contacts


• Compatible with wide range of chip sizes


• No solder wicking design


• Hi Temp PPS insulator


• Open frame design for viewable solder joints

Applications

PLCC Sockets are commonly used in electronics applications and a socketed chip is particularly useful when developing new products. PLCC sockets are compatible with a range of chip sizes so for example where on-board programming is not achievable when PLD or another chip is needed they can be programmed off the circuit board before being added to test the system operation.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
