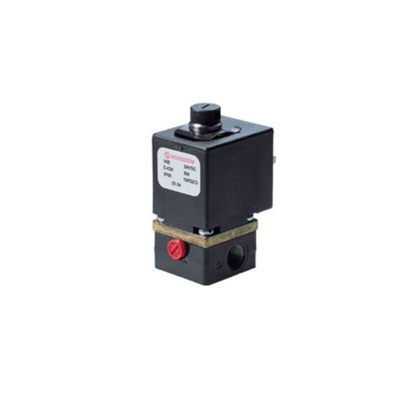

V05A486M-B633A, Norgren 3/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/8 V05 Series 24V dc, Клапан

IMI Norgren Pneumatic Solenoid Valve, Zinc Alloy Body Material, 10 Bar Maximum Operating Pressure - V05 Series - V05A486M-B633A

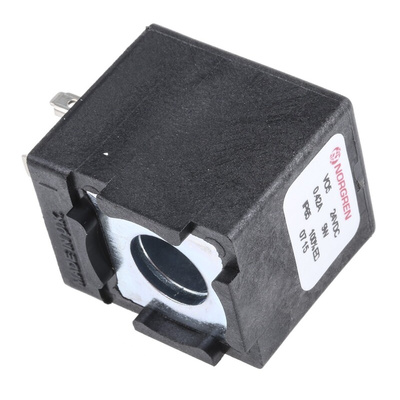

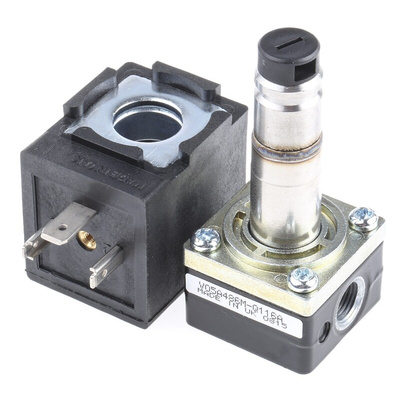

Looking for a device to control the flow of compressed air through your system? Choose this pneumatic solenoid valve from IMI Norgren. For versatility, it's compatible with filtered and non-filtered air, both lubricated and non-lubricated. Actuation is controlled by a solenoid spring that opens and closes using electromagnetic power, making operation fully automated. This unit has a poppet valve that generates low friction to give you fast response times and a long service life. The coil can be removed, which makes it easier to replace and minimises maintenance.

Features & Benefits

• 8 to 15ms response time gives you a high level of control and boosts your workflow
• 190L/min flow rate supports demanding applications
• Broad ambient operating temperature range between -30°C and +50°C for use in harsh environments
• Operates at pressures from 0 to 10 bar for wide compatibility

Applications

• Assembly lines
• Industrial automation
• Chemical processing industry

What type of seals does this solenoid valve have?

This component uses NBR seals that block fluids, dust and other small particles. NBR is corrosion-resistant and doesn't react to chemicals, oils and other liquids, which helps ensure a long service life.

VO3/VO4/VO5 Excel Poppet Valves Data Sheet
