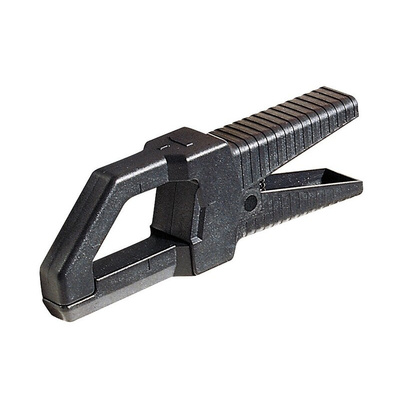

P01120029A, Chauvin Arnoux Y3N Current Clamp, AC Adapter, 500A ac AC Max, Адаптер

The Chauvin Arnoux Y series clamps are designed to be both rugged and versatile whilst remaining easy to use. The jaws are designed so that the clamps can be hooked onto cables or clamped onto Busbars for current measurement up to 600 A AC.

Minimum current (A) 4
Maximum current (AC) (A) 600
Current type Alternating current
Output current (mA) 6000
Transfer ratio 10 mA/A (1000/1)
Frequency (kHz) 1
Battery Power No
Including test lead Yes
Jaw opening (mm) 30
Accuracy (%/100%) 3
Weight (g) 420
