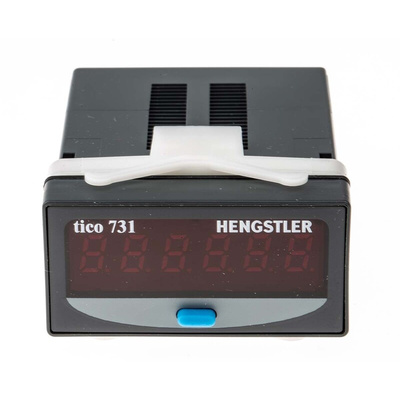

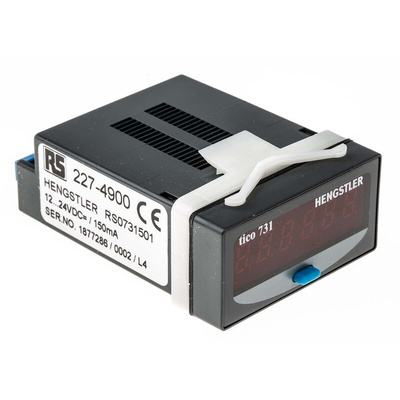

Hengstler Digital Counter
The Hengstler TICO 731 series digital impulse counter is a programmable, panel mount device. This counter has a voltage input and transistor output. It also has a 6-digit LED display. It has a voltage rating between 12VDC and 24VDC. The user can select from negative or positive edge-triggered count inputs with low count (30Hz) or high count (7.5kHz) input speeds. This counter can be reset externally or by pressing the front reset button which can also be disabled via a bridge wire. This counter has a maximum count frequency of 7.5KHz.
Features and Benefits
Can be used as a replacement for electro-mechanical counter
KEYLOCK: Disabling of a reset button
OUT: Transistor output for preset signal
INPUT 2: Control input for temporary locking of count input (gate)

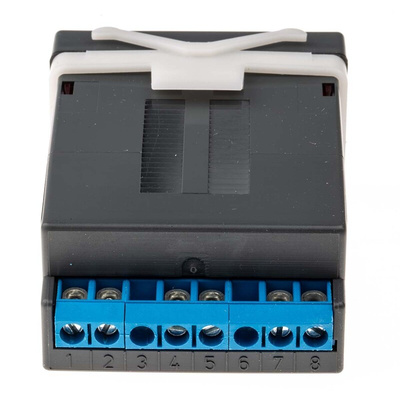

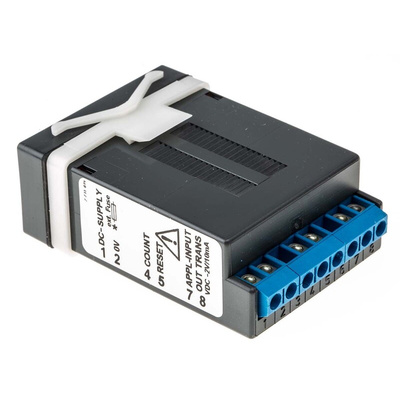

Plug-in screw terminal connection
Front dimensions is 48mm x 24mm
Operating temperature ranges between -10°C and 50°C
Applications
Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines
Certifications
IP54 rated
Техническая спецификация
Operating instructions TICO 731.5TICO 731-4-5 - Operating InstructionsDatasheetUN38.3 Lithium Battery Test Summary| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
