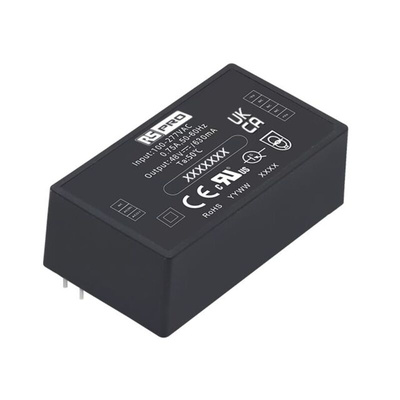

RS PRO AC-DC Converter, 48V dc, 630mA, 30W, 1 Output, 100 → 430V dc Input Voltage

RS PRO LD30 Series AC-DC Converters

RS PRO is proud to introduce the LD30 series AC-DC converters. These 30 W compact converters are ultra-slim PCB mount power supplies commonly used in applications such as telecommunication and home appliance applications.
The LD30 series is available with a range of output voltages, offers high efficiency, reinforced insulation, and has excellent EMC performance.
The converters are approved to UL62368, EN62368, IEC62368, EN60335, and EN61558 and perform with the CLASS B limits of CISPR32 / EN55032/ EN55014 without external components.

Features and Benefits

• Universal 85 - 305VAC and 100 - 430VDC


• Industry standard footprint


• Efficiency up to 90%


• No Load power consumption < 0.1W


• Operating temperature range - 40ﾟC to +85ﾟC


• 5000 m altitude operation


• Over-voltage category OVC 111 (meet EN61558)


• EMI performance meets. CISPR32 / EN55032 CLASS B EN55014


• IEC/EN/UL62368-1/EN60335-1 EN61558-1 safety approval

General Specification

• Model: AC-DC 30W power supply


• Mounting Type: PCB mount


• Package Type: Black plastic, flame-retardant and heat-resistant (UL94V-0)/Metal


• MTBF: MIL-HDBK-217F@25ﾟC >500,000 h


• Dimensions: 69.5 x 39 x 24 mm

Input Specification

• Voltage Range: 85 to 305V ac, 100 to 430V dc


• Frequency: 47 to 63Hz


• AC Current Rating: 0.75A/115V ac, 0.5A/230V ac


• Inrush Current: 25A / 115 ac, 50A / 230V ac


• Input Protection: Recommend external 2A/300V, slow blow, required

LD30 Series AC-DC Converter Variants

• 5 V dc, 6 A, RS stock no: 227-5214


• 12 V dc, 2.5 A, RS stock no: 227-5215


• 15 V dc, 2 A, RS stock no: 227-5216


• 24 V, 1.3 A, RS stock no: 227-5217


• 48 V dc, 630mA, RS stock no: 227-5218

Applications

• Industrial control systems


• Instrumentation and electrical equipment


• Electronics
