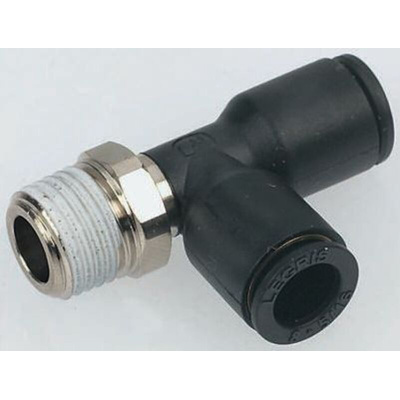

3103 10 17, Legris Threaded-to-Tube Tee Connector Push In 10 mm x Push In 10 mm x R 3/8 20 bar, Переходник

2275571
Номер производителя: 3103 10 17Производитель: Legris
Цена за шт. (норма упаковки 2 шт)
3585.00 руб. (С НДС) *
Количество 2+ 10+ 20+
Цена 3585.00 руб. 3480.00 руб. 3363.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Stud Run Tee Adaptor - Male Taper & Parallel Thread

A high-quality polymer push in fitting suitable for compressed air applications. The LF3000 fittings can be used in systems with a working pressure from a vacuum of 0.9 bar to a positive pressure of 20 bar. These fittings are suitable for use with all plastic pneumatic plastic tubing and are 100% leak tested during manufacture.
The 3103 fittings allow the connection of two plastic pneumatic tubes at 90 degrees to a singlek threaded port.

Features and Benefits

Full bore design
Exceptionally low leak rate
Available with BSPP and BSPT threads
Suitable for Vacuum or pressure applications
ISO 14743 compliant
Date coded for traceability and reliability
Automatically seals in both dynamic and static situations

Note

In the Thread Size column, R indicates taper thread and G indicates parallel thread.

Threaded Tube Adaptors, Elbows and Tees

4 to 12mm compact fittings
Suitable for 99% vacuum
Push-in assembly: no tools required
Disconnect by depressing release collet
Plastic body
Nitrile O-rings

A range of pneumatic elbow and tee adaptors for converting push-in to threaded type connections.
All types have a maximum operating pressure of 20 bar and an operating temperature range of -20 to +80°C.

Техническая спецификация
pdfStud Run Tee Male Drawing
Давление - максимальное рабочее:
20 бар
Корпус - материал:
Glass Reinforced Nylon
Отводы разъема:
R 3/8
Отводы разъема - Тип:
Male
Производитель - серия:
LF3000
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Разъем A:
Push In 10 mm
Разъем A - Тип:
Male
Разъем B:
Push In 10 mm
Стиль подключения:
Threaded-to-Tube
