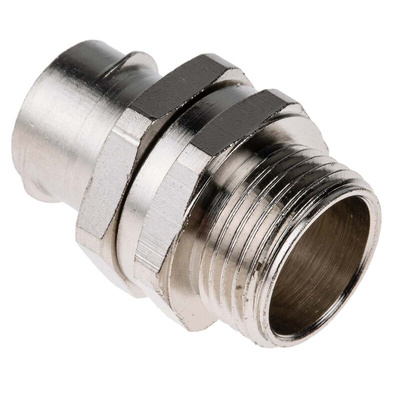

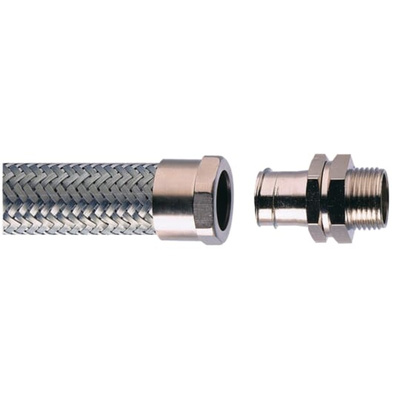

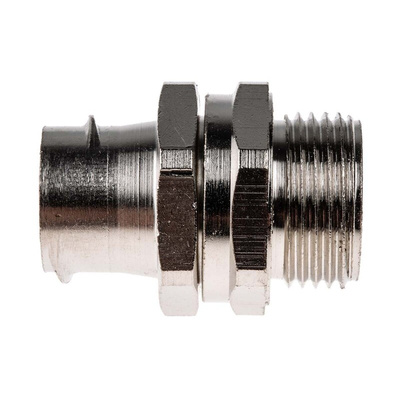

7TCA296010R0074 S20/M20/B, Adaptaflex Swivel, Conduit Fitting, 20mm Nominal Size, M20, Brass, Silver

Adaptaflex Conduit Fitting, Nickel Plated, IP40 Rating - S Series - S20/M20/B

If you're going around in circles trying to link up cable ducts, this conduit fitting from Adaptaflex is the solution. You can swivel it around with a flexible motion through 360° to make installation easy and prevent conduit damage. It's a breeze to lock into place – just tighten it with a spanner into a threaded knockout. With a nominal size of 20mm, it's a precise fit for compatible M20 entries. Electricity flows freely throughout wiring installations thanks to the conductive brass material.

Features & Benefits

• Nickel-plated finish guards your cables against damage from chemicals and corrosion
• IP40 rating means it's protected from tools and wires greater than 1mm
• Made from inherent low fire hazard materials to prevent conduits from catching alight in high temperatures
• Very high level of mechanical protection shields conduits from heavy vibrations, wear and tear

Applications

• Underfloor wiring
• Lighting systems
• Construction sites

What conditions can I use this fitting in?

When in motion, this conduit fitting performs reliably under extreme temperatures with a dynamic range between -45°C and +250°C. This means it stands up to harsh industrial worksites.

Steel Flexible Conduit Systems Series S & SS

Datasheet - S20/M20/B

Catalogue - Cable Protection Systems
