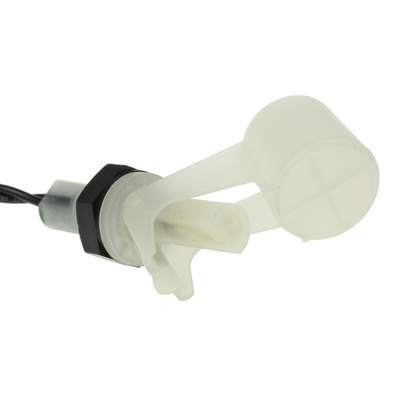

RSF14Y050RF, Cynergy3 Direct Mounting Float Switch, Polypropylene, Direct Load, Float, 500mm

Cynergy3 Float Switch

The Cynergy3 RFS10 series drop float switch is designed to eliminate the problems associated with limescale build-up around the pivot point of the conventional float switch. It has an electrical rating of 240VAC and 0.6A. This particular series is primarily for applications where a high-level condition has to be monitored. This drop float type switch is used for monitoring upper level and the extended drop float type is used for monitoring the lower level in a tank.
Note:
Suitable for signal switching and use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e. G. filament lamps) loads.
Supplied with:
0.5m of PVC 16//0.2 cable (polypropylene and polysulfone ETFE) (PPS).

Features and Benefits

Float positioned below the switch in N/C position
Switch opens well before liquid level reaches the float pivot
Pivot out of liquid
High level switch position
Flying lead or M12 connector
Polypropylene material
Fluid SG of 0.70

Applications

Wall kettles
Hot vending machines

Certifications

WRAS approved
UL approved
