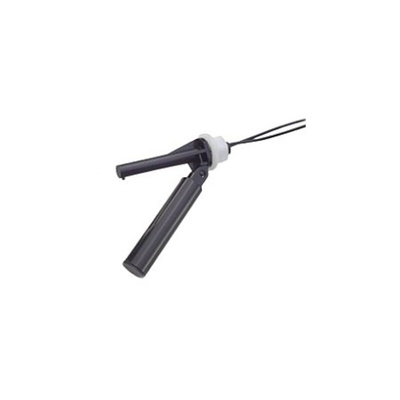

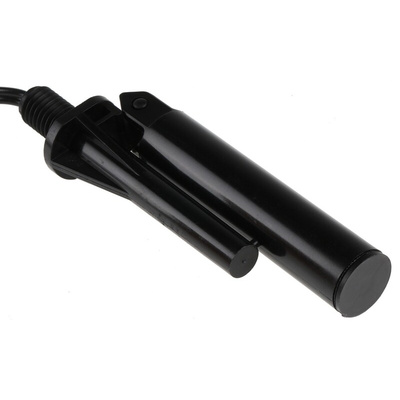

RSF33W100RC, Cynergy3 Horizontal Float Switch, Nylon, NO/NC, Float, 1m

Cynergy3 Float Switch

The Cynergy3 RSF30 series float switch is horizontal mount and has NO/NC output configuration. This float switch has a nylon body. This is higher power side entry, internally fitted switch. It is used for directly switching small loads of less than 100VA. The fitting of these switches requires access to the inside of the tank. Side mounting switches consisting of a reed switch and pivoted actuator magnet encapsulated in a waterproof housing. The user can even reverse the switch action by rotating the device through 180°.
Note:
Suitable for signal switching and use with transistorised input/ low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e. G. filament lamps) loads.

Features and Benefits

Minimum fluid SG is 0.85
Maximum switching power 100VA
Cable length is standard 1m
Maximum operating temperature is 75°C
This float is use in hot and cold water
It has close level (SG=1) 20mm and open level (SG=1) 47mm
Lead out: 100cm PVC 16/0.2

Certifications

WBS approved
WRAS approved
UL listed
ISO9001

Datasheet
