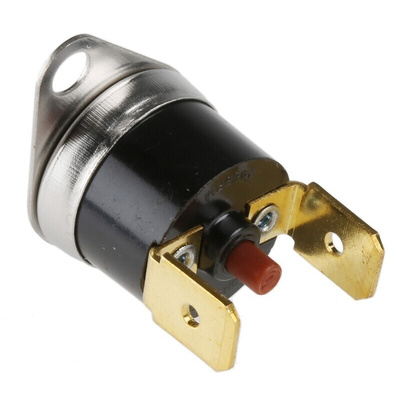

2455RM 9082-468 L70C, Honeywell Bi-Metallic Thermostat, Opens at +70°C, +150°C Max, NC, Manual Reset, Bracket Mount, Термостат

Manual Reset Bi-Metallic Thermostat

Designed for applications that require status indication of over temperature
Snap action bi-metallic disc, electrically and thermally isolated from the switch, actuates the normally closed contacts
Manual reset can be operated at approximately 70% of the opening temperature
Dust-free phenolic housing with heat sensitive disc retained by a heat conducting stainless steel end cap
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac

Approvals

UL recognised component, CSA Certified

Honeywell Bi-Metallic Thermostat, Opens at + 70°C - 2455RM Series - 2455RM 9082-468 L70C

Looking for a manual reset bi-metallic thermostat? This option from Honeywell is designed for applications where the slightest over temperature can be critical and where there's a need for highly accurate temperature readings. Its compact size and combination of metals allow it to respond rapidly to temperature changes. The unit has an SPST (single pole, single throw) construction, so it acts as an on-off switch. It's actuated by a snap-action bi-metal disc that's temperature-sensitive. This triggers the normally-closed (NC) contacts when surface or ambient temperatures reach the operational set point of +70°C.

Features and Benefits

• High-capacity 10 A rating
• Factory calibrated for standard performance
• Silver/nickel alloy contacts for high performance
• Phenolic housing for durability
• Quick-connect terminals for ease of installation

Applications

• Heating, ventilation and air-conditioning equipment
• Office automation products
• Medical equipment

What temperature range does this device operate within?

Honeywell 2455RM Series thermostats are designed to cater for a wide range of industrial and commercial settings in both hot and cold environments. This device will safely operate between 0°C and +150°C.
