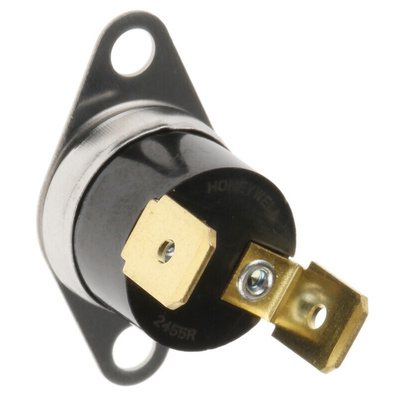

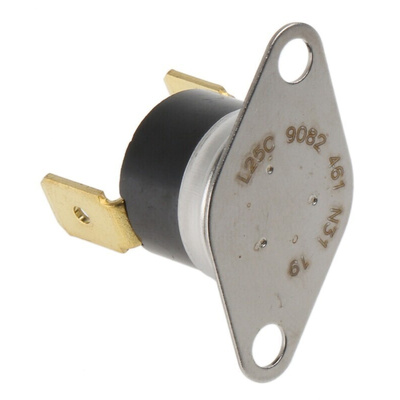

2455R 9082-461 L25C, Honeywell Bi-Metallic Thermostat, Opens at +25°C, Closes at 15°C, +150°C Max, SPST NC, Automatic Reset, Bracket Mount, Термостат

Bi-Metallic Thermostat

Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
•Phenolic body with stainless steel end cap.
•1/4in tab termination.
•Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
•Dielectric strength of 2000 Vac.
•N/C types open on temperature rise.
•N/O types close on temperature rise.

Approvals

UL recognised component, CSA Certified

Honeywell Open-On-Rise Thermostat, +25°C Opening Temperature, Phenolic - 2455R Series - 2455R 9082-461 L25C

Effectively control temperature-sensitive appliances with this thermostat from Honeywell. It has a bimetallic strip that expands and bends away from the circuit when the threshold temperature is reached, preventing further heating. This device is calibrated to automatically open at a temperature of +25°C and close at a temperature of +15°C, so it's ideal for regulating environments that are sensitive to high heat. Its silver and nickel alloy contacts have a low electrical resistance of 50mΩ to help ensure a stable and reliable connection.

Features & Benefits

• Wide operating temperature range of 0°C to +150°C for use in demanding environments
• Current rating of 10 to 15A for use in demanding applications
• Phenolic housing material for resistance to heat and impact

Applications

• Photocopy machines
• Automotive industry

Is this thermostat flame-resistant?

The thermostat's phenolic housing material is flame-resistant and stops burning within a short time in the event of a fire, helping to enhance safety in your workplace.

How long will this thermostat last?

This thermostat has a robust lifespan of up to 100,000 cycles, making it a long-lasting choice.
