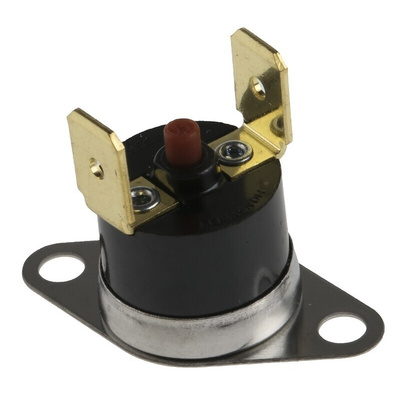

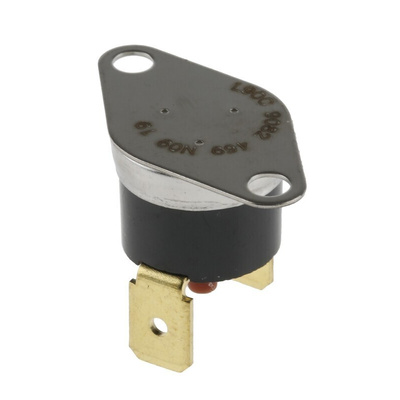

2455RM 9082-469 L90C, Honeywell Bi-Metallic Thermostat, Opens at +90°C, +150°C Max, NC, Manual Reset, Bracket Mount, Термостат

Honeywell Bimetallic Sensor Thermostat, 250V AC, +90°C Opening Temperature - 2455RM 9082-469 L90C

Control the climate around your system with this open-on-rise thermostat from Honeywell. It’ll automatically indicate a rise in the internal temperature of your system thanks to its reactive bimetallic contacts. The NC (normally closed) contacts remain closed until your system reaches +90°C. They will then open to switch your circuit off and warn you of high-heat conditions. This thermostat has a durable, wear-resistant phenolic housing, making it suitable for use in harsh environments. The fitted heat-conducting stainless steel end cap provides protection against fluctuations in temperature for reliable performance.

Features & Benefits

• Solder terminal type for a secure connection
• Wide operating temperature range of 0°C to +150°C for use in demanding environments
• Voltage rating of 250V AC for use in high-power systems
• Snap-action mechanism for quick switch action in the event of overheating

Applications

• Air conditioners
• Ventilation systems
• Hospital equipment

Can I manually control this thermostatic switch?

Yes, you can manually reset and operate this thermostat at approximately 70% of its opening temperature of +90°C. Manual control can be used to rapidly switch the device on or off in the event of an emergency or maintenance needs.
