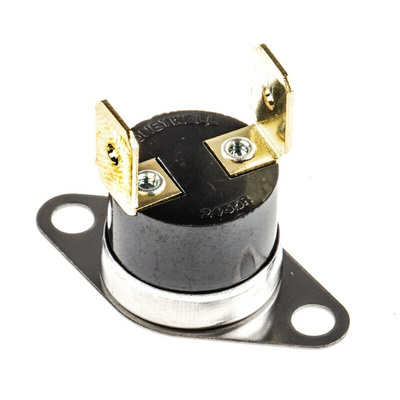

2455R 9082-459 L15C, Honeywell Bi-Metallic Thermostat, Opens at +15°C, Closes at 5°C, +150°C Max, SPST, Automatic Reset, Bracket Mount, Термостат

Honeywell Thermostatic Switch, Open-On-Rise, +15°C Opening Temperature - 2455R Series - 2455R 9082-459 L15C

Control temperature-dependent environments automatically with this thermostatic switch from Honeywell. The switch opens at +15°C, breaking the circuit to prevent the temperature from rising. When the temperature reaches +5°C, the unit closes the contacts to reactivate the circuit and ensure the temperature doesn't fall. This eliminates the need to manually reset the device for greater ease of use. The unit's stainless steel end cap and robust phenolic housing ensure good resistance to wear, corrosion and heat for long-lasting performance in harsh environments.

Features & Benefits

• Built-in mounting bracket for simple installation
• Dielectric strength of 2000V AC to withstand high electrical pressure

Applications

• High-current HVAC (heat, ventilation and air conditioning) systems
• Automotive industry
• Copy machines
• Heat and smoke detection

What are the contacts on this thermal switch made of?

This thermal switch has contacts made of silver and nickel alloy. These materials ensure high electrical conductivity and resistance to corrosion for a reliable connection.

What's the operating temperature range of this thermostat?

This thermostat has a broad operating temperature range of +0°C to +150°C, so it's a good choice for use in hot and cold environments.
