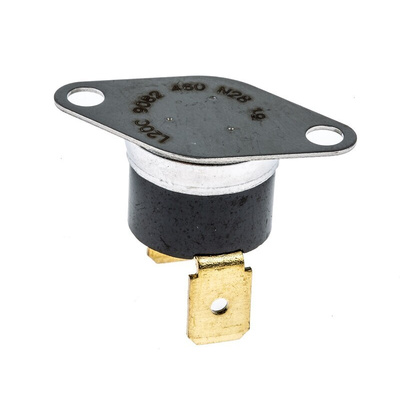

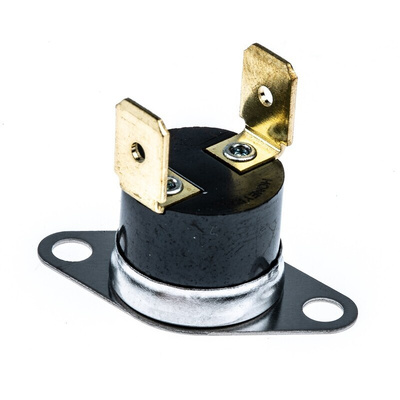

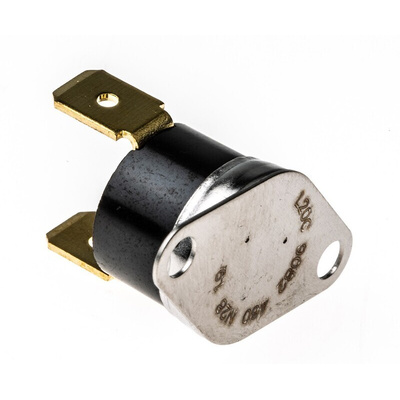

2455R 9082-460 L20C, Honeywell Bi-Metallic Thermostat, Opens at +20°C, Closes at 10°C, +150°C Max, NC, Automatic Reset, Bracket Mount, Термостат

Bi-Metallic Thermostat

Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
•Phenolic body with stainless steel end cap.
•1/4in tab termination.
•Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
•Dielectric strength of 2000 Vac.
•N/C types open on temperature rise.
•N/O types close on temperature rise.

Approvals

UL recognised component, CSA Certified

Honeywell Open-On-Rise Thermostat Switch, +20°C Opening Temperature, Phenolic - 2455R Series - 2455R 9082-460 L20C

Regulate the temperature in your environment with this thermostat switch from Honeywell. It's an open-on-rise switch, which means the contacts will open when the temperature reaches +20°C and will close when the temperature reaches +10°C. For durability, the contacts are made of silver and nickel alloy, so they have good electrical conductivity and are resistant to corrosion. The phenolic body of this switch is resistant to heat and impact, making it suitable for use in demanding industrial environments.

Features & Benefits

• Dielectric strength of 2000V AC for electrical stability
• Quick-connect terminals for tool-free installation
• Wide operating temperature range between 0°C and +150°C for use in demanding environments
• Tough stainless steel end cap is resistant to impact and wear
• Light weight of 6g for minimal strain on your equipment

Applications

• Storage facilities
• HVAC (heating, ventilation and air conditioning) systems
• Manufacturing industry

How do I reset this thermostat switch?

The switch is designed to automatically reset when the temperature falls to +15°C below its operating temperature. This eliminates the need for a manual reset, saving you time and effort.
