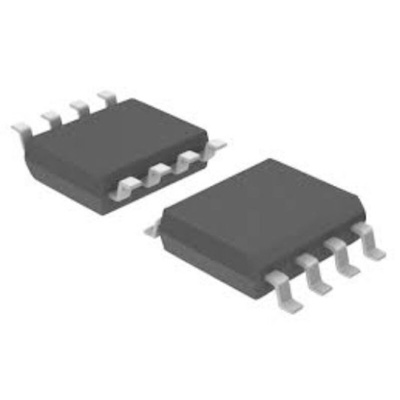

STMicroelectronics L5050SDTR, Dual, Voltage Regulator 50mA 8-Pin, SO-8, Регулятор напряжения

2282994
Номер производителя: L5050SDTRПроизводитель: STMicroelectronics
Цена за шт. (норма упаковки 10 шт)
448.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The STMicroelectronics L5050 is a 5 V low dropout linear voltage regulator suitable for automotive applications, available in single (L5050S) or dual isolated (L5050SD) linear output voltage in a SO-8 package. The LDO delivers up to 50 mA (2x50 mA for the dual version) of load current and consumes as low as 5 μA (per each output in L5050SD) of quiescent current with device disabled. High output voltage accuracy (±2%) is kept over wide temperature range, line and load variation. Enable features (two enables for the dual version) allow enabling or disabling each output.

Low dropout voltage
Low quiescent current consumption
Dual electrically isolated voltage regulators
Enable input for enabling/disabling the voltage regulator
Thermal shutdown and short circuit protection
Wide temperature range (Tj = -40 °C to 150 °C)

Техническая спецификация
pdfDatasheet - L5050SDTR
