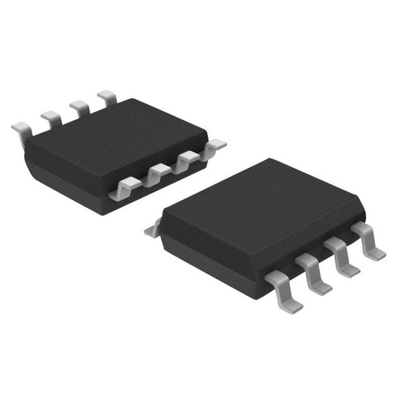

STMicroelectronics L99VR01STR, 1, Voltage Regulator 200mA 8-Pin, SO-8

The STMicroelectronics L99VR01 is a low dropout linear voltage regulator designed for automotive applications available in SO-8 and in PowerSSO-12 packages. The LDO delivers up to 200 mA of load current and consumes as low as 1 μA of quiescent current when the regulator is disabled. The input is 40 V tolerant to withstand load dump, while the operating input voltage range is between 2.15 V and 28 V. The L99VR01 can be configured, through SELx pins, to generate a fixed selectable output voltage (0.8 V
1.2 V
1.5 V
1.8 V
2.5 V
2.8 V
3.3 V or 5 V). High output voltage accuracy (±2%) is kept over wide temperature range, line and load variation.

Enable input for enabling/disabling the voltage regulator
Output voltage monitoring with reset output
Negligible ESR effect on output voltage stability for load capacitor
Programmable autonomous watchdog through external capacitor

Datasheet - L99VR01STR
