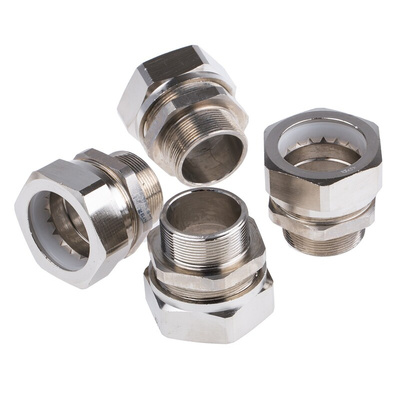

SCBCM0707-RS, Kopex Adapter, Conduit Fitting, 40mm Nominal Size, M40, Brass

Kopex Conduit Fitting, IP67 Rating, Nickel Plated Finish - SCBCM Series - SCBCM0707-RS

Link a protective duct to your enclosure with this conduit fitting from Kopex. It has an open end that lets you push in your conduit without any tools, saving time and hassle. The other end has an M40 thread for screw connection to your wall box. This unit's brass body holds out against impact, making it the right choice for use in harsh environments. Nickel plating improves its resistance to corrosion, so you can count on it for long-term performance, even in damp or steamy settings. With four units in a pack, you'll have enough for more complex projects.

Features & Benefits

• IP67 rating shows that it's fully protected from dust and withstands immersion in up to 1m of water for 30 minutes
• Safe to use in challenging settings, thanks to an operating temperature range between -40°C and +105°C

Applications

• Switchgear systems
• Automation and control devices
• Automotive industry

Is this fitting safe from EMI?

Yes, this piece of kit is screened to prevent EMI. This means that it's immune to the effects of interference and doesn't emit it either, making this the right choice for electrically sensitive applications.

EMI Screened

In line with European Directives all equipment/installations should neither produce electromagnetic interference (EMI) or be affected by it. Cables in such cases should have an effective screen to protect against the effects of EMI. These conduits can contribute significantly to the EMI screen requirements of installations covered by the EMC Directive.

808751E Assembly Instructions

Dimensional Drawing
