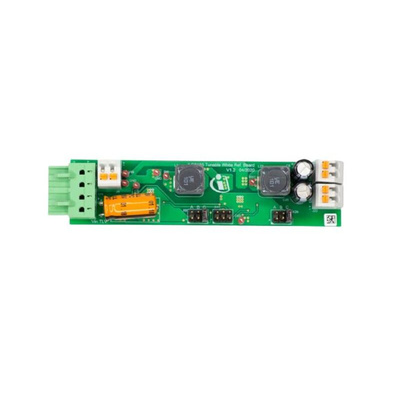

Infineon REFTWILD8150E60V1ATOBO1, ILD8150E Tunable White Evaluation Board LED Driver Evaluation Board for ILD8150E for

The Infineon tunable white reference board consists of 80V DC-DC buck LED driver IC ILD8150E and monolithic integrated fixed NPN type voltage regulator IFX1117ME V33. The LED Driver IC consists of two identical channels and one auxiliary 3.3 V supply. To achieve higher light quality it employs output electrolytic capacitors to further smooth output current. An electrolytic capacitor and an LDO are used to provide a smooth supply of 3.3 V and up to 60 mA for the dimming control circuit . The two channels operate at frequencies of up to 500 kHz, the output current can be changed in the range of 250 to 1500 mA.

Analog dimming down to 12.5 % and PWM dimming from 12.5 % to 0.5 %
Current precision ±3 %
Soft-start, UVLO, current limitation, low-power shutdown
Deep dimming performance without flicker and noise via an innovative one-pin hybrid method
High current precision leads to high light quality, also in color accuracy
Fast, stable and efficient regulation without audible noise
Easy implementation of tunable white designs

Datasheet - REFTWILD8150E60V1ATOBO1

Instruction sheet - REFTWILD8150E60V1ATOBO1
