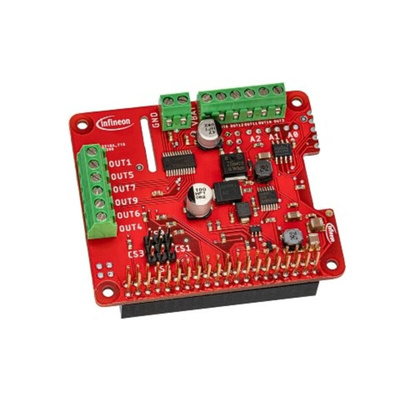

The Infineon DC Motor Control HAT is equipped with the twelve-fold half-bridge driver TLE94112ES and comes with a ready-to-use software library. The half-bridge driver is designed to drive DC motor loads in sequential or parallel operation, especially for automotive motion control applications such as heating, ventilation and air conditioning (HVAC) flap DC motor control. The HAT is also equipped with an Infineon TLS4125D0EP V50 synchronous step-down converter which can power the Raspberry Pi.
Wide input voltage range of 5.5V to 20V
Reverse polarity protection
Driver is protected against over-temperature, over-current, over-voltage, under-voltage and enables diagnosis of over-current, over-voltage, under-voltage
SPI interface with zero clock diagnosis
Enhanced EMC performance
Integrated PWM generator with 3 different frequencies (80Hz, 100Hz, 200Hz)
Compact design for multi-motor applications
Quick and easy setup for evaluation and demo applications
Datasheet - TLE94112ESRPIHATTOBO1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
