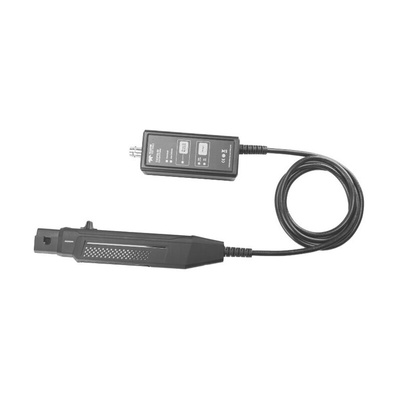

Teledyne LeCroy T3CP Series T3CP30-50 Current Probe, AC/DC Type, 50MHz, BNC Connector

Teledyne LeCroy, 30A, 50 MHz current probe, BNC, AC/DC, 30A rms, 50A peak pulse

Teledyne Test Tools new T3CP series current probes are wide bandwidth DC/AC active current probes, featuring high bandwidth, fast and accurate waveform capture, measurement accuracy up to 1% and low circuit insertion loss.
These probes can be used with any oscilloscope having a high-impedance BNC input. The T3CP current probe are a state of the art device that does not require the breaking of a circuit or the insertion of a shunt to make accurate and reliable current measurements. This current probe is ideal for making accurate AC, DC, and impulse current measurements.

Features & Benefits

Accurate and easy current measurements
50 MHz bandwidth
Combined DC and AC measurements
Over-current protection with dual indicators
High and low range / sensitivity selection (dual range)
Low current measurements feature
Degaussing and automatic zero setting
User control of range/sensitivity selection, degaussing and automatic zero
Best Accuracy: ±1 % ±10 mA

Applications

Switching and linear power design
Single and multi-phase inverters
Consumer electronics and household appliances
Electric vehicle motor, power train and drive electronics
Power component measurements
Domestic and industrial photo-voltaic (PV) system design
LED lighting power design
Industrial and military control electronics
Research and development
Universities
General electronics education and power focused courses

Datasheet - T3CP30-50
