NSYMR43, Schneider Electric Metal, 15mm H, 251mm W, 348mm L for Use with Spacial CRN Enclosure, Spacial S3D Enclosure, Spacial

Chassis Plates for Spacial 3D Steel Enclosures & Thalassa series

Monoblock perforated plates (Telequick)
Rectangular holes 26 x 11 mm
Horizontal Pitch 30 mm; Vertical Pitch 15 mm

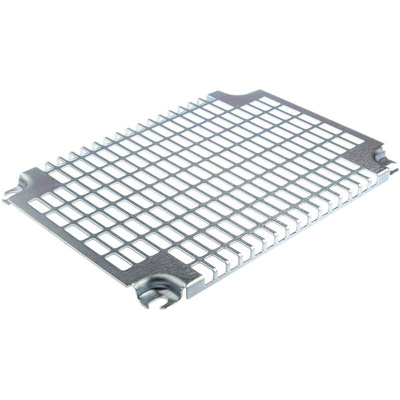

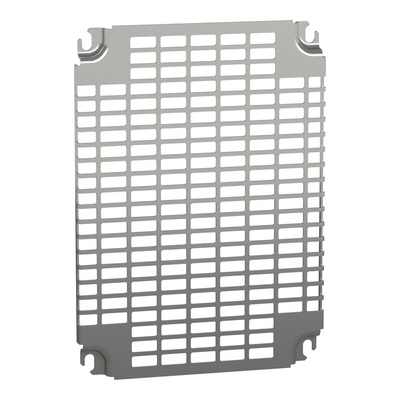

Schneider Electric Mounting Plate, Steel Material, 15mm Depth - NSYMR43

Need a way to secure electrical components inside your enclosure? Go for this mounting plate from Schneider Electric. It has a body made from zinc-coated steel that provides durability and resists corrosion to deliver long-lasting service in demanding settings. You can install the versatile unit by sliding it into place in a stepwise manner or by directly fixing it onto the back studs using M8 screws. This achieves a reliable connection that remains stable even in the face of heavy vibrations.

Features & Benefits

• Compact dimensions of 348 (H) x 251 (W) x 15mm (D) for space-efficient use in tight setups
• Comes with 198 slots for flexible positioning and attachment of multiple devices
• Rear installation allows for good ventilation in your enclosure
• Telequick perforations enable speedy component mounting

Applications

• Medical equipment
• Data centres
• Telecommunications installations
• Energy industry

What type of enclosures can I pair this mounting plate with?

You can install this versatile piece of kit in enclosures from the Spacial CRN, Spacial S3D, Spacial S3X and Thalassa PLM series.

How big are the cutouts?

Each cutout measures 11 (W) x 26mm (L) for easy compatibility with your components.
