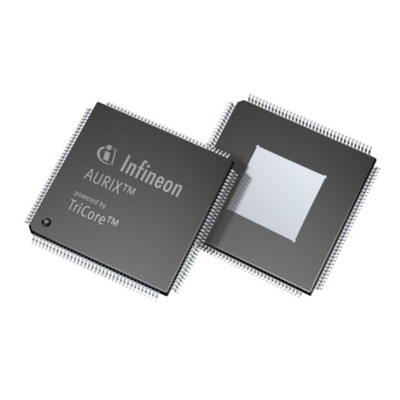

Infineon TC275T64F200WDCKXUMA1, 64bit TriCore Microcontroller, TriCore, 200MHz, 4.096 MB Flash, 176-Pin LQFP

A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200 MHz, up to 4MB of Flash and a LQFP-176 package.

SAK-TC275T-64F200W DC belongs to the TC27xT family . Its innovative multicore architecture, based on up to three independent 32-bit TriCore CPUs, has been designed to meet the highest safety standards, while simultaneously increasing performance significantly. Equipped with a triple TriCore with 200 MHz, 4MB of Flash memory and a Powerful Generic Timer Module ( GTM), the TC27xT series aim for a reduced complexity, best-in-class power consumption and significant cost savings.

Summary of Features

•Triple TriCore with 200MHz and DSP functionality (three high performance 32-bit super-scalar TriCore V1.6.1 CPUs running at 200 MHz in the full automotive temperature range)
•4MB Flash w/ ECC protection (dedicated closely coupled memory areas per core)
•64 KB EEPROM at 500 k cycles
•472KB RAM w/ ECC protection
•64x DMA channels
•Sensor interfaces : 10xSENT, 3xPSI5, 1xPSI5S
•State of the art connectivity : 1xEthernet 100 Mbit , 1x FlexRay ,4xASCLIN, xQSPI, 1xI²C , 2xMSC , 1xHSSL, I²S emulation , 5xCAN including data rate enhanced CAN FD
•Single voltage supply 5V or 3.3V
•LQFP-176 package ( LQFP 0.5 mm pitch )
•ambient Temperaure range -40°C...+125°C

Benefits

•Diverse Lockstep Core with clock delay
•Redundant and diverse timer modules ( GTM, CCU6 , GPT12)
•Access permission system
•Safety management unit ( SMU )
•Direct Memory Access ( DMA )
•I/O, clock, voltage monitor
•Developed and documented following ISO 26262 to support safety requirements up to ASIL-D
•AUTOSAR V3.2 and V4.x
