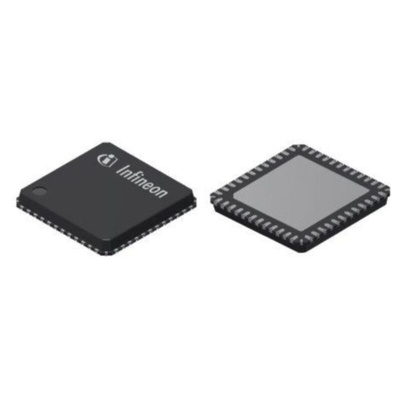

Infineon TLE9877QXW40XUMA1, 32bit ARM Cortex M3 Microcontroller, Cortex, 40MHz, 64 kB, 48-Pin VQFN

MOTIX™ TLE9877QXW40 offers reliable solutions for automotive applications such as pumps and fans

The MOTIX™ TLE9877QXW40 is part of the MOTIX™ TLE987x product family. The MOTIX™ TLE9877QXW40 is a single chip 3-Phase motor driver that integrates the industry standard Arm® Cortex®-M3 core, enabling the implementation of advanced motor control algorithms such as field-oriented control. It includes six fully integrated NFET drivers optimized to drive a 3-Phase motor via six external power NFETs, a charge pump enabling low voltage operation and programmable current along with current slope control for optimized EMC behaviour. Its peripheral set includes a current sensor, a successive approximation ADC synchronized with the capture and compare unit for PWM control and 16-bit timers. A LIN transceiver is also integrated to enable communication to the device along with a number of general purpose I/Os. It includes an on-chip linear voltage regulator to supply external loads.
It is a highly integrated AEC-Q100 Grade 0 automotive qualified device enabling cost and space efficient solutions for mechatronic BLDC motor drive applications that are located under-the-hood such as pumps and fans.

Summary of Features

•Six current programmable Drivers with charge pump for N-Channel MOSFET
•Integrated LIN transceiver compatible with LIN 2.2 and SAEJ2602
•Two Full duplex serial interface (UART) with LIN support
•Two Synchronous serial channel (SSC)
•On-chip OSC and PLL for clock generation
•One high voltage monitoring input with wake up functionality
•High speed Operational amplifier for motor current sensing via shunt
•Measurement unit:
8-bit ADC module with 10 multiplexed inputs
10-bit ADC module with 8 multiplexed inputs, 5 external Analog inputs
On chip temperature and battery voltage measurement unit
•Increased Temperature Shutdown supports operation up to Tjmax = 175 °C
•Independent Programmable window watchdog
•5V/1.5V Internal supplies
•External Supply (VDDEXT): 5V+/-2% @ 20mA
•Power saving modes:
MCU slow-down Mode
Sleep Mode
Stop Mode
Cyclic wake-up Sleep Mode

Features of the Microcontroller:

•32 bit Arm® Cortex®-M3 Core, up to 40 MHz clock frequency
•64 kByte flash memory for code and data
•32 kByte Boot ROM memory in code space (used for boot code and IP storage)
• 6 kByte RAM memory
• Harvard architecture
•Thumb®-2 Instruction Set and hardware divide and multiplication unit
•Four 16-Bit timers
•Capture/compare unit for PWM signal generation (CCU6) with 2 x 16-bits timers

General Characteristics:

•Operating supply voltage Vs=5.5 to 28V, maximum rating 40V
•Extended operating range Vs=3.0 to 28V, MCU / Flash fully functional
•ESD performance :
up to 2kV / handling on all pins
4kV @ HV inputs
6kV @ LIN pin
•Overvoltage device clamp (load dump ruggedness) up to 40V
•Wide operating temperature range: Tj:-40°C up to 175°C

Datasheet - TLE9877QXW40XUMA1
