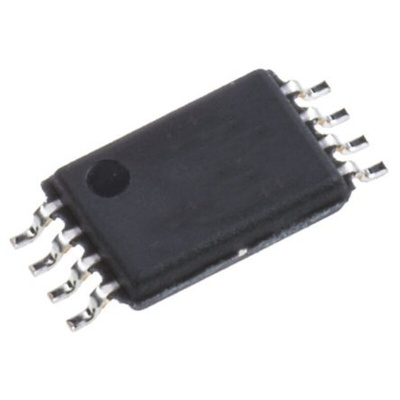

ST25DV04KC-IE6T3 Modulation Technique, STMicroelectronics ST25DV04KC-IE6T3 RFID and NFC Transceiver, 8-Pin TSSOP8

The STMicroelectronics ST25DV04KC dynamic NFC RFID tag IC offers 4‑Kbit of electrically erasable programmable memory (EEPROM). It has two interfaces such as I2C serial link and RF link. In I2C mode the user memories contain up to 512 bytes, 2048 bytes and 8192 bytes, which could be split in 4 flexible and protectable areas. In RF mode, following ISO/IEC 15693 or NFC forum type 5 recommendations the user memory contains respectively up to 128 blocks, 512 blocks and 2048 blocks of 4 bytes which could be split in 4 flexible and protectable areas. This tag also offers a fast transfer mode between the RF and contact worlds. In addition the GPO pin provides data informing the contact world about incoming events, like RF field detection, RF activity in progress or mailbox message availability.
Two-wire I2C serial interface supports 1MHz protocol Single supply voltage range of 1.8 V to 5.5 VMultiple byte write programming (up to 256 bytes)Configurable I2C slave addressNFC Forum Type 5 tag certified by the NFC ForumSupports all ISO/IEC 15693 modulations, coding, sub-carrier modes and data ratesCustom fast read access up to 53 Kbit/sData retention of 40 yearsHalf-duplex 256 bytes dedicated bufferAnalog output pin to power external componentsRF command interpreter enabled/disabled from I2C host controllerImmediate RF switch off from I2C Internal tuning capacitance of 28.5 pFTemperature range between -40°C and 85°CTSSOP8 package
