SRA200G/20-30, Sensata / Cynergy3 SPST Reed Switch, 1A 230V ac/dc, Герконовый переключатель

Form A & C Reed Switches

Suitable for use with location sensors, proximity switches and level switches at low to medium voltages and current
Electrical Life 10⁵ - 10⁶ Switching Cycles
Mechanical Life 10⁹ Operations
For suitable magnets, see stk. no 118-7108 typically

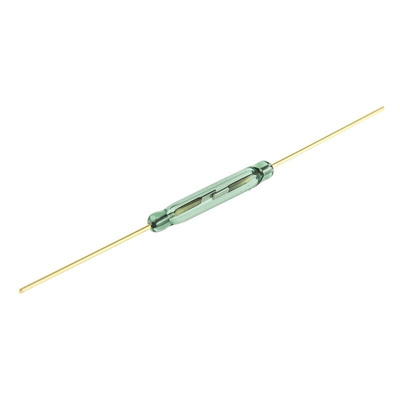

Sensata Cynergy3 Reed Switch, SPNO, 55mm - SRA Series - SRA200G/20-30

Use this Sensata Cynergy3 reed switch with location sensors, proximity switches and level switches at low to medium voltages. Its compact design makes it ideal for applications where there isn't a lot of space available. The pin contacts on either end of the unit are a standard shape and size. This makes for quick and easy installation directly onto your printed circuit board (PCB). Once fitted, the pins create an airtight seal that stops dust from getting in and wearing the connection down. This contributes to the switch's reliable performance and long service life.

Features & Benefits

• Rhodium contact material reduces wear, corrosion and heat damage for improved durability
• SPNO (single pole, normally open) configuration allows the relay to complete the circuit and directly activate the reed switch
• Fast 2.5ms operating time (including bounce) and a 0.5ms release time for high efficiency

Can I clean this reed relay?

As Sensata Cynergy3 reed relays don't come hermetically sealed as standard, it's not advisable to clean them with water-based solutions. If you need to clean your PCB after the relay has been soldered on, use an IPA (isopropyl alcohol) solution.
