DRA283/60-80, Sensata / Cynergy3 SPST Reed Switch, 5A 250V ac/dc, Герконовый переключатель

Form A & C Reed Switches

Suitable for use with location sensors, proximity switches and level switches at low to medium voltages and current
Electrical Life 10⁵ - 10⁶ Switching Cycles
Mechanical Life 10⁹ Operations
For suitable magnets, see stk. no 118-7108 typically

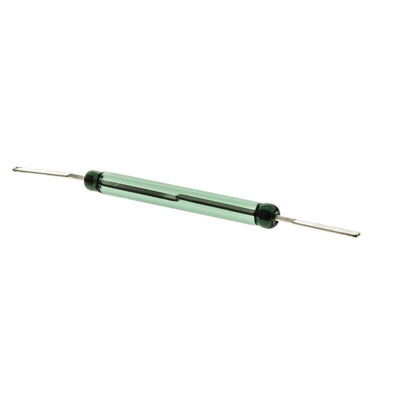

Sensata Cynergy3 Reed Switch, Rhodium Contacts, 100mΩ Contact Resistance - DRA283/60-80

Control the flow of electricity in a circuit with this reed switch from Sensata Cynergy3. It diverts and stops the current by using magnetism to actuate an electrical switch. The switching voltage of 250V AC/DC means this device is suitable for use in low to medium-power applications. You can rest assured that this product reacts quickly thanks to its quick operating time of 5ms and its release time of 0.2ms. You'll find units like this one in household appliances, location sensors and alarm systems.

• Rhodium contacts for high conductivity and resistance to corrosion
• Compact dimensions of 84 (L) x 5.4mm (diameter) for installation in areas where space is limited
• Low initial contact resistance of 100mΩ for reliable current flow

What's the maximum switching current of this unit?

This unit has a maximum switching current of 5A to handle light to medium-duty loads.

What's the operating temperature range of this reed switch?

Thanks to its wide operating temperature range between -40°C and +150°C, you can safely use this switch in demanding environments.
