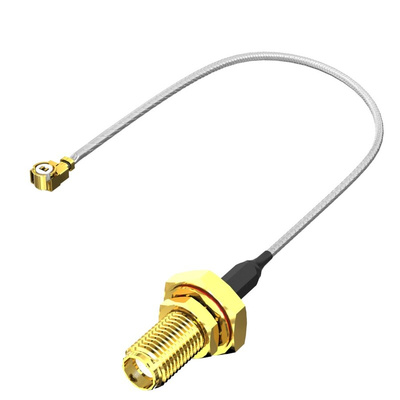

MH113-MH1RP-01SB1-0300, Samtec MH113 Series Male MHF1 to Female SMA Coaxial Cable, 300mm, RF Coaxial, Terminated

Samtec Coaxial Cable, 1.13mm Outer Diameter, 6.8mm Bend Radius - MH113 Series - MH113-MH1RP-01SB1-0300

When you need to split radio frequencies between components, this coaxial cable by Samtec is up to the job. This kind of lead is often used in splitter boxes to send data to more than one device for enhanced versatility in your setup. The female SMA and male MHF1 connectors attach to compatible ports without the need for extra tools, so you can put this device to work in a flash. A frequency of up to 3GHz means you get rapid-fire performance.

Features & Benefits

• FEP jacket is resistant to chemicals for use in harsh settings
• Compact outer diameter of 1.13mm for use in tight spaces
• Bend radius of 6.8mm for flexibility when guiding it to your port
• Performs reliably in harsh environments, thanks to a broad operating temperature range between -40°C and +90°C

Applications

• Electrical engineering
• Military technology
• Aviation industry

What length is this coaxial cable?

It measures 300mm in length, so it takes up little space in your setup.

What's the impedance of this cable?

This cable has an impedance of 50Ω to ensure minimal power loss and maximum efficiency.
