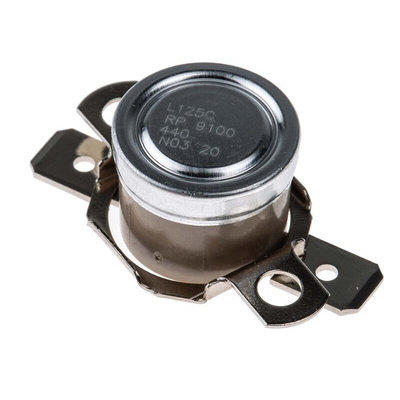

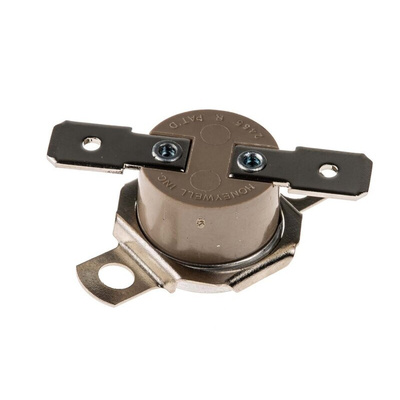

2455RP 9100-440 L125C, Honeywell Bi-Metallic Thermostat, Opens at +125°C, Closes at +110°C, +186°C Max, NC, Automatic Reset, Термостат

Basic Bi-MetallicThermostat

PPS Ryton body with steel end cap
Electrical terminals parallel to the mounting face and a floating steel bracket to ease mounting and increase temperature tolerance
N/C types open on temperature rise, N/O types close on temperature rise
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac

Note

The contacts are NOT silver plated and are unsuitable for use with low current dc applications

Honeywell Bimetallic Thermostat, 250V AC, +125°C Opening Temperature - 2455RP Series - 2455RP 9100-440 L125C

For effective temperature regulation in enclosed spaces, use this bimetallic thermostat switch from Honeywell. Thanks to its open-on-rise design, the contacts will open when the temperature reaches +125°C. When it falls to +110°C, the contacts will close to ensure the temperature doesn't get too low. This unit is made of a robust PPS (polyphenylene sulfide) material that's resistant to heat and corrosion, even in harsh industrial environments. It also comes with a floating steel bracket to ensure easy and secure mounting.

Features & Benefits

• Nominal voltage rating of 250V AC for use in heavy-duty applications
• Broad operating temperature range between 0°C and +186°C for use in demanding environments
• Light weight of 6g to minimise strain on your equipment

Applications

• Fire safety systems
• Hospital equipment
• Heating and cooling units
• Aviation industry

How does a bimetallic thermostat work?

A bimetallic thermostat has two internal metallic strips. One of the strips expands when it detects a rise in temperature. This causes the electrical circuit to break and shuts off the thermostat, allowing the temperature to fall back into acceptable limits.
