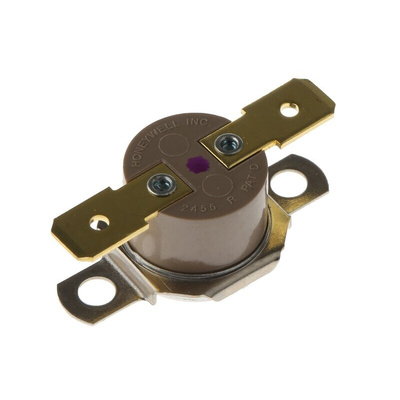

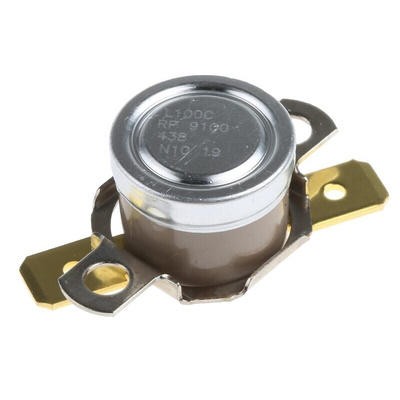

2455RP 9100-438 L100C, Honeywell Bi-Metallic Thermostat, Opens at +100°C, Closes at +85°C, +186°C Max, NC, Automatic Reset, Термостат

Honeywell Bimetallic Thermostat, 250V AC, +100°C Opening Temperature - 2455RP 9100-438 L100C

Use this open-on-rise thermostat from Honeywell to automatically regulate the internal climate of your system. It’s fitted with bimetallic discs that expand and contract in response to temperature changes, facilitating the rapid switching on and off of your device when a certain temperature is reached. The NC (normally closed) contacts will switch on your circuit at +85°C to ensure a rise in temperature and turn it off at +100°C for system cool-down. You can use this thermostat in high-power applications thanks to its voltage rating of 250V AC. Its PPS (polyphenylene sulfide) body ensures resistance to corrosion and chemicals, making it a good idea for use in harsh industrial environments.

Features & Benefits

• Fitted with a floating steel bracket for ease of installation
• Stainless steel end cap ensures protection against temperature fluctuations
• Solder tab terminal for simple and secure connection to your circuit wires

Applications

• Boiler systems
• Air conditioners
• Hospital equipment

What’s the operating temperature of this thermostatic switch?

This thermostatic switch has a wide operating temperature range of 0°C to +186°C, making it suitable for use in demanding environments.

Thermal Switches

Thermostats Line Guide

Dimensional Drawing

Datasheet 2455R
