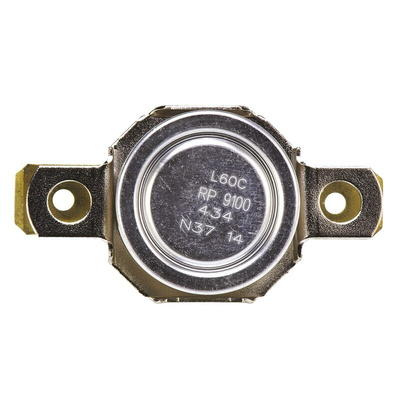

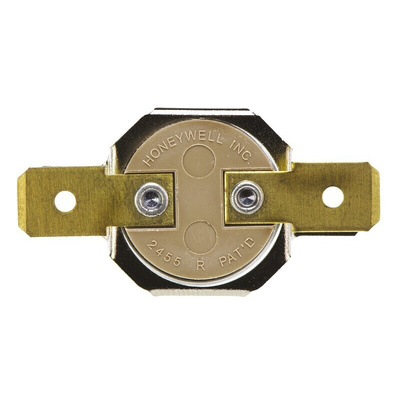

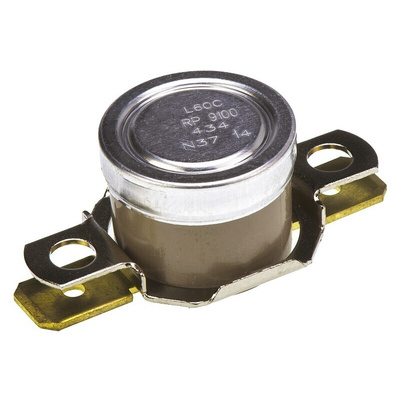

2455RP 9100-434 L60C, Honeywell Bi-Metallic Thermostat, Opens at +60°C, Closes at +45°C, +186°C Max, NC, Automatic Reset, Термостат

Basic Bi-MetallicThermostat

PPS Ryton body with steel end cap
Electrical terminals parallel to the mounting face and a floating steel bracket to ease mounting and increase temperature tolerance
N/C types open on temperature rise, N/O types close on temperature rise
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac

Note

The contacts are NOT silver plated and are unsuitable for use with low current dc applications

Honeywell Bi-Metallic Thermostat, NC, Opens at +60°C - 2455RP Series - 2455RP 9100-434 L60C

Use this snap-action Honeywell bi-metallic thermostat for precision temperature regulation in a wide range of commercial applications. Thanks to its compact size, it responds quickly to the slightest temperature change. The SPST (single pole, single throw) switch is normally closed (NC) until the temperature rises to +90°C, when it opens to break the circuit. The 250 V AC device automatically resets at +60°C, which is 15°C below the nominated operating temperature, so you don't need to do this manually.

Features and Benefits

• Phenolic-resin body with a stainless-steel end cap for a long service life
• 10 A-rated contacts to tolerate high current scenarios
• Quick-connecting terminal type to make installation simple
• Broad operating temperature range of 0°C to +150°C for varied applications
• Comes with a floating steel bracket, which increases temperature tolerance and is electrically separated from the contact for safety

Applications

• HVAC (heating, ventilation and air conditioning) systems
• Office automation
• Heat and smoke detectors

Is this thermostat suitable for all types of application?

This thermostat is designed for high-current applications. Its contacts are not silver-plated and therefore unsuitable for use with low current DC applications.
